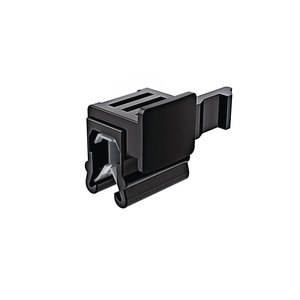

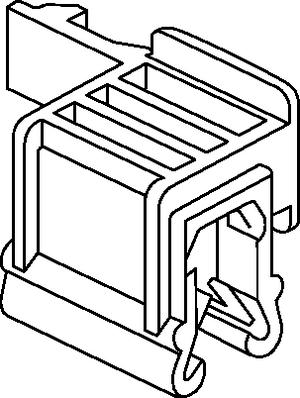

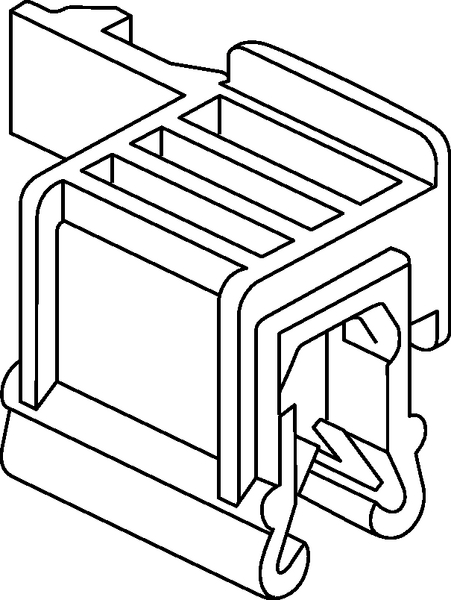

Connector clip for edge, EWCAP-005-11, black, 500pcs.
Nr. articol 151-00430
| EC43-PA66HIRHS-BK
|
Detalii
- Simply push per hand onto a plastic edge
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)

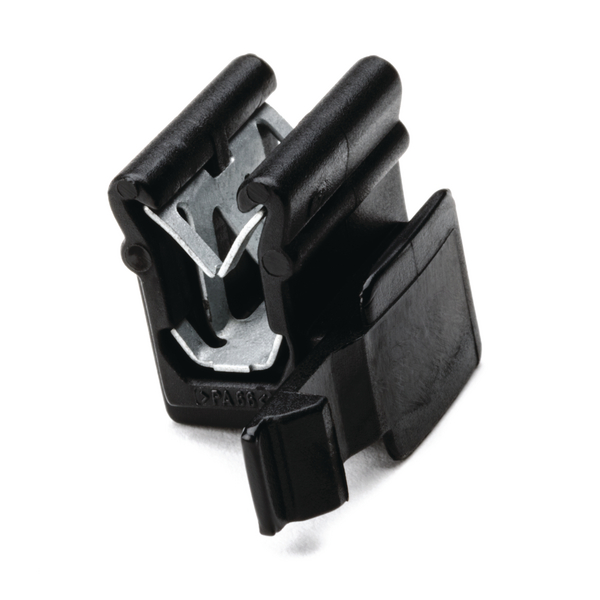

- Integrated metal clamp holds clip firmly in place
- Clamp consists of double tempered spring steel
- Ideal for applications where holes or adhesives are not suitable
Solicitați acum oferta dumneavoastră individuală
Solicitați oferta
Mai multe produse în acest grup de produse:
| Colour | Black (BK) |
| Fixation Method | Edge Clip |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | EC43-PA66HIRHS-BK |

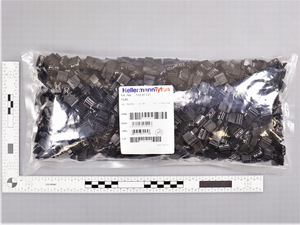

| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Group | Connector Clips for Edges |

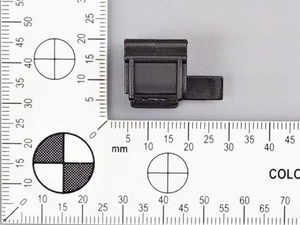

| Short Description | Connector Clip 16x9.1 mm, for edges, high impact modified, heat stabilised, black |
| Type | EC43 |
Descărcare
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026269023 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.155m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00307m³ |
| Packaging 1 - Weight (kg) | 1.017993kg |
| Packaging 1 - Width (m) | 0.36m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 7000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 15.071902kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 84000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 201.864kg |
| Packaging 4 - Width (m) | 0.8m |
