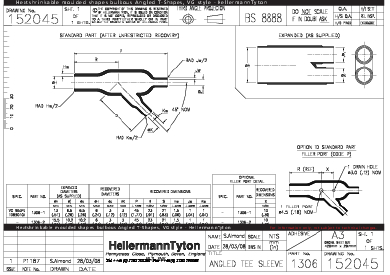

Angled T-Shape VG-Style black, PO-X
Nr. articol 413-06180
| 1306-1-G-PO-X-BK
|
Detalii
- Branching part 45 Y-joint
- Mechanical tension relief for cable harnesses
Solicitați acum oferta dumneavoastră individuală
Solicitați oferta
Mai multe produse în acest grup de produse:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 1306-1-G-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | pcs. |
| Product Family | Helashrink 1300 Series, 30° & 45° angle |
| Product Group | Angled T-Shapes, VG style |
| Short Description | Angled T-Shape VG-Style black, PO-X |
| Type | 1306-1-G |
| Variant | For 2-core cables |
|
|
| Angle | 45 |
| Flexibility | semi rigid |
| HW ± 30 % | 1.5mm |
| JW ± 20 % | 1.0mm |
| JW ± 30 % | 1.0mm |
| KW ± 20 % | 1.0mm |
| KW ± 30% | 1mm |
| P ± 10 % | 45.0mm |
| R nom. | 23.0mm |
| R ± 10 % | 23.0mm |
| S nom. | 21.0mm |
| S ± 10 % | 21.5mm |
| Weight/Unit | 0.005kg |
| ∅H max. b | 6.0mm |
| ∅H min. a | 13.0mm |
| ∅J max. b | 3.0mm |
| ∅J min. a | 6.5mm |
| ∅K max. b | 3.0mm |
| ∅K min. a | 6.5mm |
Descărcare
| Designation as per VG-Norm | VG 95343 T06 B 010 A |
| Dielectric Strength | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +200 °C |
| Nato number | 5970-12-305-9467 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | JN1000T, VG 95343-8:2016-03 |
