WH | Detalii

High-quality self-laminating labels made of polyester
Suitable for marking of wires and cables in harsh environments
Flexible but also tear and impact resistant material
Excellent resistance to alcohol, gasoline, cleaning agents and hydraulic oils
Very temperature and UV-resistant

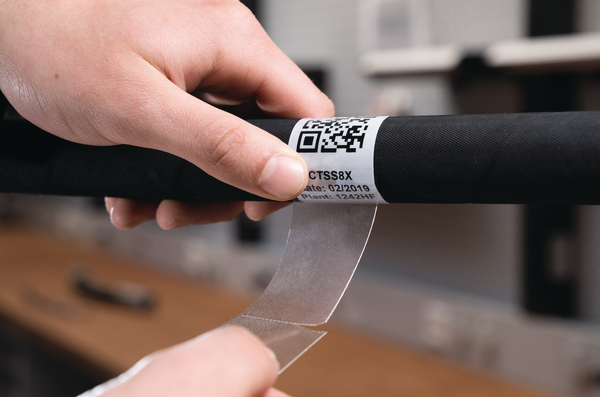

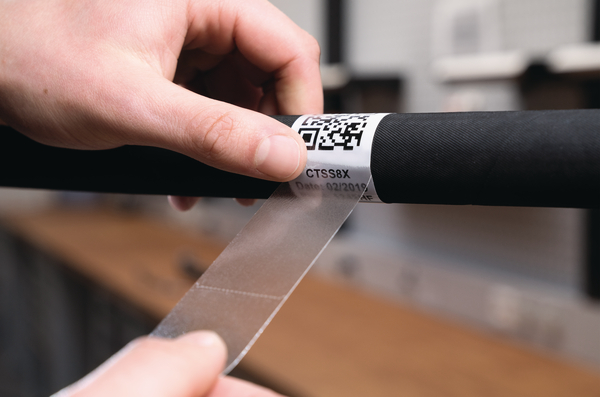

Perforation allows demand-based shortening of the protective laminate for smaller outer diameters
Laminating function gives excellent protection against humidity and mechanical abrasion
Rounded edge design gives additional bonding strength

Solicitați acum oferta dumneavoastră individuală

Solicitați oferta

Găsiți un distribuitor în apropierea dumneavoastră

Mai multe produse în acest grup de produse:

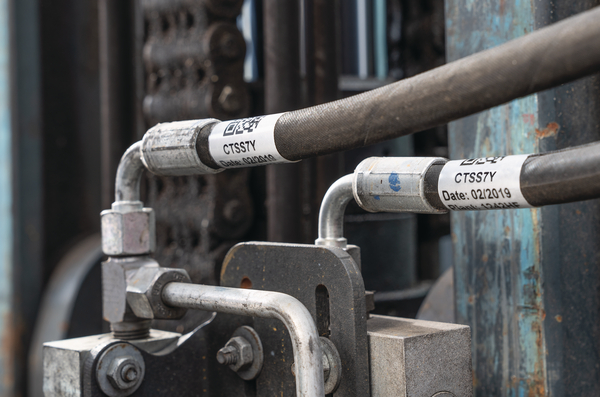

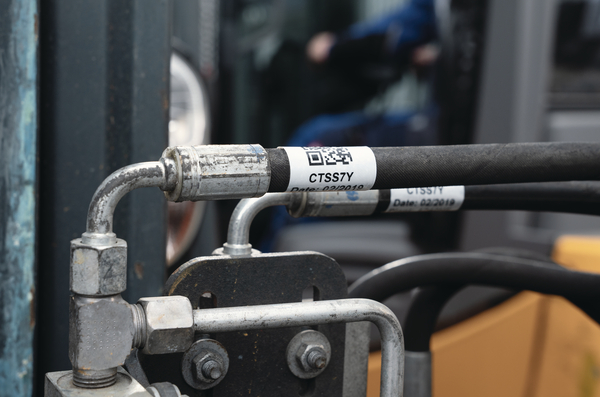

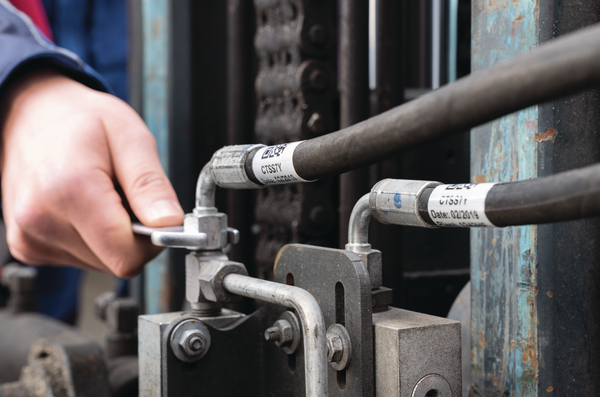

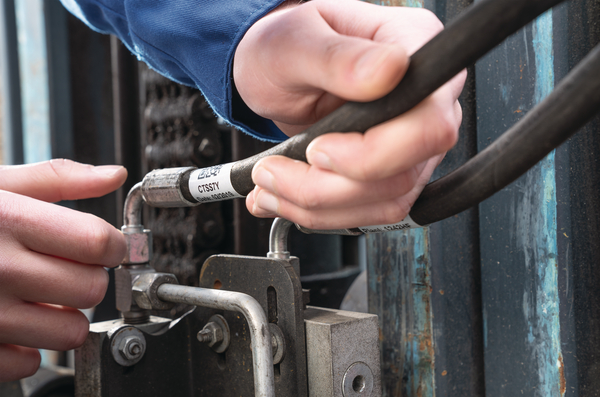

Application	These self-laminating labels are ideal for marking hoses and pipes in harsh environments, e.g. as they can be found in the hydraulics industry. Helatag 1232 consists of a white printable area with a protective laminate ensure the printed text is shielded from negative environmental influences - such as humidity, dirt, debris and mechanical abrasion.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Cable ∅ max	56.02mm
Cable ∅ min	30.24mm
Chem. Material Properties	Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour	White (WH), Transparent (CL)
Colour Marking Field	White (WH)
Fixation Method	Pasting / Stick
Material	Type 1232, Polyester, white transparent, self-laminating (1232)
Mech. material properties	Due to its flexibility particularly suitable for identification of cables.
PART DESCRIPTION	TAG32-230TD1-1232-CL/WH
Pack Cont.	400pcs.
Package Content packed in	reel
Product Family	Helatag 1232
Product Group	Self-laminating labels, thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Self-laminating labels, thermal transfer 32X230 mm white-transparent, 1 reel = 400pcs.
Type	TAG32-230TD1

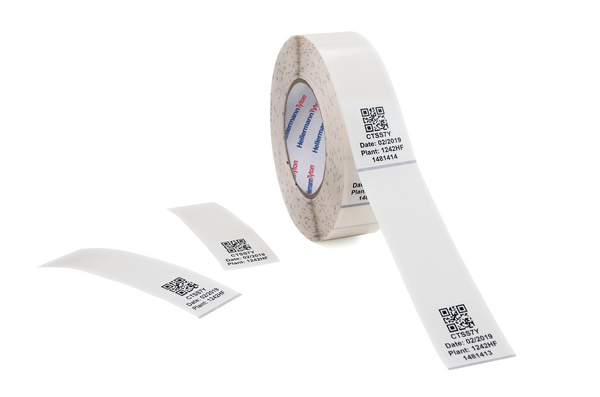

Variant	Roller form
With label space	Yes

Adhesive	Acrylic
Adhesive Operating Temperature	-40 °C to +150 °C
CE Certification	No
CSA Certified	No
Curing Temperature	from +2 °C
ELV compliant (Article 4 - 2)	YES
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +150 °C
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Resistance to	Brake cleaner: 720h (at room temperature), Alcohol 94%: 720h (at room temperature), Hydraulic oil: 720h (at room temperature)
Specifications
UV-Stabilised	Yes
