SS-GY | Detalii

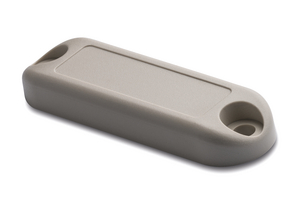

Identification element with integrated RFID transponder according to international standards
Carrier made of impact-resistant plastic, which has been embedded in a metal ring
Designed for welding fastening
Suitable for the application on nearly all surfaces
Clear identification of objects and / or locations through unique numbering systems
Faster, more secure and error-free data management
Robust and durable
Relatively large range
Bulk detection of up to 500 transponders per second is possible thanks to the UHF frequency (depending on the infrastructure)

Solicitați acum oferta dumneavoastră individuală

Solicitați oferta

Găsiți un distribuitor în apropierea dumneavoastră

Mai multe produse în acest grup de produse:

Application	Due to its robust design, the universally applicable identification element RFID HARDTAG SOLID is ideally suitable for the identification of objects and places indoors and outdoors, especially for the clear identification of objects, machines and transport or disposal containers made of metal. The metal ring equipped with a weld seam offers the possible to create a permanent bond between metal surfaces. Therefore the compact transponder is often used for the clear identification of overseas containers or metal drums. The robust design allows the identification element to withstand harsh conditions and rough treatment. RFID HARDTAG SOLID can also be used on vehicles such as trucks, railway wagons and forklifts.
Colour	Grey (GY)
Fixation Method	weld-on
Material	Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS), Stainless Steel (SS)
PART DESCRIPTION	RFID HARDTAG SOLID 105x35-PC/ABS/SS-GY
Pack Cont.	240pcs.
Package Content packed in	bag
Product Family	ToughLine – Ultra high frequency (UHF), weld-on, blank
Product Group	Hard tags with RFID transponder
Short Description	RFID identification element 105x35x15 mm, 865-956 MHz (UHF), PC/ABS, grey
Type	RFID HARDTAG SOLID 105x35


Frequency	865-956 MHz (UHF)
Height (H)	15.00mm
Length (L)	105.00mm
Memory	User memory: 512 bits, EPC: 128 bits, TID: 96 bits
Weight/Unit	0.02kg
Width (W)	35.00mm
for Hole ∅ (FH)	5.2 mm

CE Certification	Yes
Data Retention	50 years
ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
IP-Rating	IP68
Operating Temperature	-40 °C to +80 °C
ROHS compliant	Yes
Radio protocol	ISO 18000-6C, EPC Gen2
Resistance to	Water: 100h (at room temperature), Salt mist: 100h (at room temperature), Petroleum: 100h (at room temperature), Mineral and vegetable oils: 100h (at room temperature)
Specifications
Specifications	IEC 62262: IK09, IEC 68-2-29, IEC 68-2-6
Type of RFID chip	Impinj Monza 4QT
Write endurance	100000 cycles
