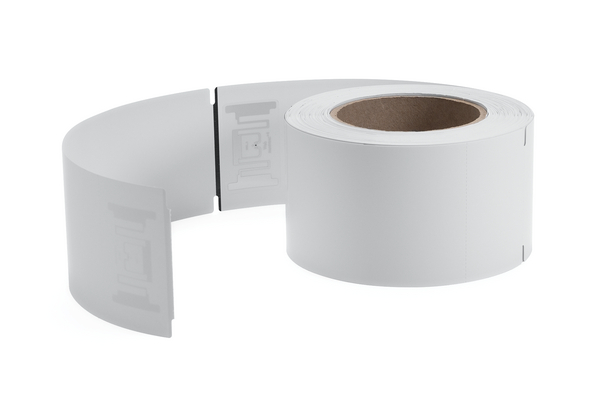

RFID label, 840-960 MHz (UHF), white, 254.00x74.00mm, 550pcs.
Nr. articol 556-00848 | TAG254x74UHF-1604-WH Detalii

  • Identification card with integrated RFID transponder according to international standards
  • Backing material made of sturdy cardboard
  • Can be printed with the help of thermal transfer printer
  • Executed on a reel
  • Designed for insertion in the identification compartment of small load carriers
  • Clear identification of objects and / or locations through unique numbering systems
  • Faster, more secure and error-free data management
  • Robust and durable with data retention
  • Large range of functionalities according to corresponded infrastructure (hardware, software)
  • Different colours available
arată mai mult

Solicitați acum oferta dumneavoastră individuală

Application This identification card with integrated RFID transponder (UHF / 860 - 960 Mhz) is ideal for temporary, unique identification and digital management of small load carriers and storage locations. Thanks to the so-called UID (Unique Identifier, Unique Identification Number) and its integrated and freely usable data memory, objects can be inventorised, tracked and monitored in a simple manner within the framework of asset management (resource management, maintenance) or the manufacturing execution system (production control system) or of supply chain management (purchasing, warehouse management, transport). With the help of an IT infrastructure, specific information can be assigned to each individual object or location, which can be called up as required and thus serve to optimize processes. This has an immediate positive effect on the process costs.
Colour White (WH)
Fixation Method Non-Adhesive
Key product features detectable
Marking Text Unprinted
Material Type 1604, Cardboard (1604)
PART DESCRIPTION TAG254x74UHF-1604-WH
Pack Cont. 550pcs.
Package Content packed in reel
Product Family RFID identification card type 1604 – Ultra high frequency (UHF)
Product Group Identification cards with integrated RFID transponder, thermal transfer
Self adhesive (Yes/No) No
Short Description RFID identification card 254x74 mm, 860-960 MHz (UHF), cardboard, white
Type TAG254x74UHF
Bundle ∅ 76.20mm
Bundle ∅ min. 76.20mm
Frequency 840-960 MHz (UHF)

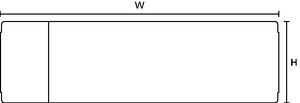

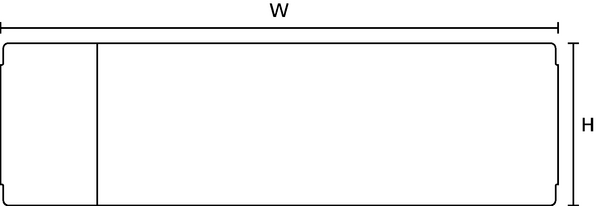

Height (H) 74.00mm
Memory EPC: 128 bits
Print Method thermal transfer print
Thickness (T) 0.30mm
Weight/Unit 0.0003kg
Width (W) 254.00mm
Curing Temperature from +5 °C
Data Retention 50 years
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -20 °C to +70 °C
Pre-Printed Yes
ROHS compliant Yes
Radio protocol ISO 18000-6C, EPC Gen2
Recommended Ribbon Type TT822OUT
Shelf Life 12 months
Specifications
Tamper proof No
Type of RFID chip NXP Ucode 7
Write endurance 100000 cycles
Country of Origin DE
Customs Number 85235910
GTIN-13 / EAN 4031026659879
Labels per Row 1pc.
Packaging 1 - Height (m) 0.079m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 550
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00316
Packaging 1 - Weight (kg) 0.165kg
Packaging 1 - Width (m) 0.2m
Storage Temperature +20 °C
Storage conditions 50% relative humidity.
ETIM 7.0 Key EC002996
ETIM 8.0 Key EC002996
ETIM 9.0 Key EC002996
