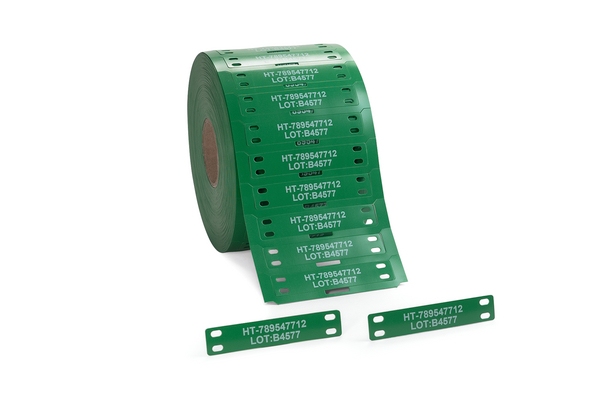

Identification tags for cable bundle in ladder style TAGLF 60x12 mm green 1000 pcs./reel
Nr. articol 556-83032
| TAGLF12X60-4-PO-X-GN
|
Detalii
- Limited fire hazard cable marker
- Halogen free
- For larger cables and wires, bundles
- Thermal transfer or laser beam printable
- Good mechanical strength and highly flexible
- Delivered on reel in convenient storage boxes
Solicitați acum oferta dumneavoastră individuală
Solicitați oferta
Mai multe produse în acest grup de produse:
| Application | TAGLF is a halogen free cable marker for mass transit applications specifically in the railway industry or for all areas where limited fire hazard material is needed. TAGLF’s material properties show low smoke propagation, density and toxicity. They are supplied pre-cut and have been formatted into a convenient "ladder" system. Simply print and press out the required TAGLF and apply with cable ties, they are also suitable for retrofit purposes. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device. |
| Colour | Green (GN) |
| Fixation Method | Others |
| Heat Aging Test | 168h/150°C |
| Heat Shock Test | 4h/150°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TAGLF12X60-4-PO-X-GN |
| Pack Cont. | 1000pcs. |
| Package Content packed in | box |
| Printable | Yes |
| Product Family | TAGLF – Rail - Limited Fire Hazard Tiptags |
| Product Group | Identification tags for cable bundle "Ladder Style", thermal transfer |
| Short Description | Identification tags for cable bundle in ladder style TAGLF 60x12 mm green 1000 pcs./reel |
| Type | TAGLF12X60-4 |
| Variant | Roller form |
| With label space | Yes |
Descărcare
| Dielectric Strength | 20.0kV/mm |
| Dielectric Strength test method | ASTM D149 |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 200 % |
| Elongation at break test method | ASTM D638 |
| Flammability | ASTM D635 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -40 °C to +105 °C |
| Oxygen index | 34.9% |
| Oxygen index test method | ISO 4589 |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TTDTHOUT |
| Reel Variant | ladder-style |
| Shelf Life | 5 years |
| Smoke density | 44Ds (max) |
| Smoke density test method | ISO 5659-2 |
| Specifications | EN 45545-2, MIL-STD-202G Method 215K, SAE - AS81531 |
| Specifications |
|
| Test Method Tensile Strength | ASTM D638 |
| Toxicity index | 0.03CITg |
| Toxicity index test method | EN 17084 |
| Country of Origin | DK |
| Customs Number | 39209990 |
| GTIN-13 / EAN | 4031026600208 |
| Markers per row | 1 |
| Packaging 1 - Height (m) | 0.098m |
| Packaging 1 - Length (m) | 0.19m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00331m³ |
| Packaging 1 - Weight (kg) | 1.281kg |
| Packaging 1 - Width (m) | 0.178m |
