Cable tie inside serrated, 270x4.6mm, ∅5.0-73.0mm, black, 500pcs.
Art.-No. 111-00118 | LK2A-PA66HIR-BK Details

  • Inside serrated cable ties for a strong hold around bundles
  • Various materials and sizes are available
  • High tensile strength with very low insertion force
  • Easy application either manually or with an application tool

Request your individual offer now

Application For bundling and securing cables, pipes, hoses and other elements. These cable ties can be used for a countless number of applications. The LK-Series is similar to T-Series but offers in-between sizes to fit individual customer needs.
Colour Black (BK)
Identification Plate Position none
Material Polyamide 6.6, high impact modified (PA66HIR)
PART DESCRIPTION LK2A-PA66HIR-BK
Pack Content 500pcs.
Package Content packed in pcs.
Product Family LK-Series
Product Group Cable ties in-between size to T-Series
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type LK2A
Variant Inside Serrated
Bundle Diameter max (metric) 73.0mm
Bundle ∅ min. 5.0mm
Length (L) 270mm
Min.Tensile Strength 225N
Thickness (T) 1.4mm
Width (W) 4.6mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Specifications
Specifications IEC 60092 series
GTIN-13 / EAN 5022660309434
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.406m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0033
Packaging 1 - Weight (kg) 0.901001kg
Packaging 1 - Width (m) 0.203m

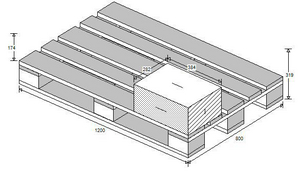

Packaging 3 - Height (m) 0.183m
Packaging 3 - Length (m) 0.389m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0204
Packaging 3 - Weight (kg) 5.731kg
Packaging 3 - Width (m) 0.287m

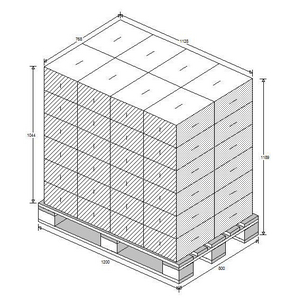

Packaging 4 - Height (m) 1.189m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.141
Packaging 4 - Weight (kg) 250.24kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
