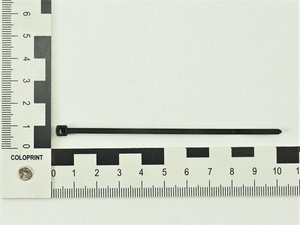

Cable tie inside serrated, 101.6x2.5mm, ∅1.0-22.0mm, black, 1000pcs.
Art.-No. 111-01480 | T18R-PA66HS-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Heat stabilised cable ties (PA66HS) for temperatures up to +105 °C
    • Available in a wide range of sizes to cover almost every application
    • Inside serration provides a strong hold onto bundles
    • Manual and/or pneumatic tools available for greater process reliability
    • Commonly offered in natural and black, other colours available on request
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    e-Learning
    Application These inside serrated cable ties are made from heat stabilised Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation.
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T18R-PA66HS-BK

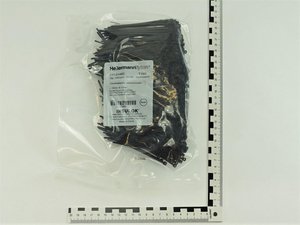

    Pack Content 1000pcs.
    Package Content packed in bag
    Product Group Cable ties for temperatures up to + 105°C (heat stabilised)
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18R
    Variant Inside Serrated
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ min. 1.0mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.45mm
    Height (H) 3.7mm
    Length (L) 101.6mm
    Min.Tensile Strength 80N
    Strap Width max. (G) 0.18"
    Thickness (T) 1.0mm
    Width (W) 2.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Nato number 5975-12-334-9192
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL-File Number E193818
    GTIN-13 / EAN 4031026447988
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.330001kg
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 35000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0495m³
    Packaging 3 - Weight (kg) 12.370035kg
    Packaging 3 - Width (m) 0.395m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 700000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 268.4kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
