19/11/2024

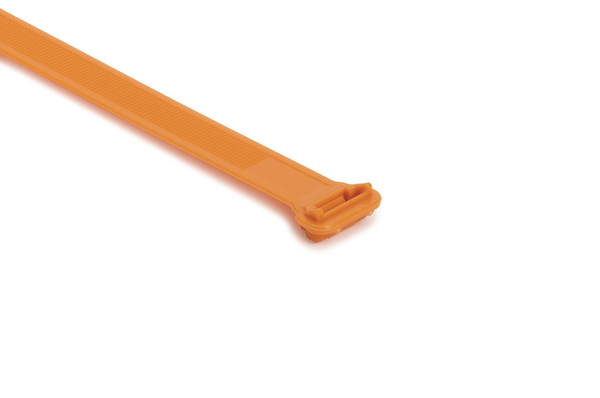

Cable tie inside serrated, 307x12.7mm, ∅9.5-82.5mm, orange, 300pcs.
Art.-No. 111-12306 | WSI-PA66HIRHS-OG |  Details

    • Wide strap is designed to minimize pinching of soft hoses and convoluted tubing
    • Low profile head
    • Clamping rails on the bottom of head to increase grip on round bundles
    • Accommodates a large range of bundle diameters: 9.5mm - 104.7mm
    • Flexible strap
    • Bent tip for quick insertion into mounts
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    e-Learning
    Application The very flexible wide-strap cable tie is used in heavy-duty applications where limited room is offered for the application. It is therefore a valued product in all areas of mass transit, as well as the construction and automotive industries.
    Colour Orange (OG), High Voltage (HV)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION WSI-PA66HIRHS-OG
    Pack Content 300pcs.
    Package Content packed in bag
    Product Family WS-Series for heavy duty applications
    Product Group Cable ties for hose and convoluted tubing
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSI
    Variant Inside Serrated
    Bundle Diameter max (metric) 82.5mm
    Bundle ∅ min. 9.5mm
    Cable Tie Head Width (metric) 19.81mm
    Height (H) 2.5mm
    Length (L) 307mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 0.50"
    Thickness (T) 1.4mm
    Width (W) 12.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026665719
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121703
