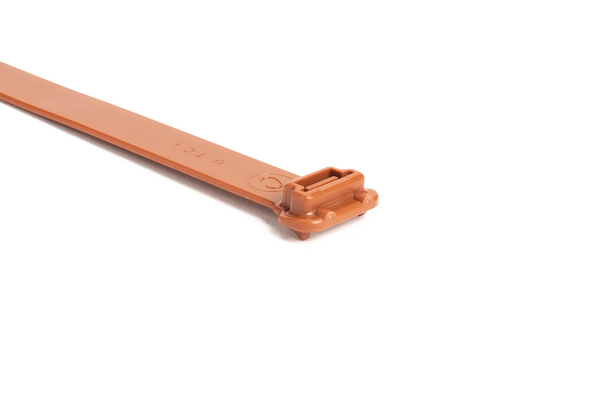

Cable tie inside serrated, 230.0x12.7mm, ∅9.5-57.1mm, brown, 300pcs.
Art.-No. 111-01715 | WSS-PA46-BN |  Details

The wide strap cable tie accommodates a large range of bundle diameters: 9,5mm - 104mm.

    • Wide strap is designed to minimize pinching of soft hoses and convoluted tubing
    • Low profile head
    • Clamping rails on the bottom of head to increase grip on round bundles
    • Accommodates a large range of bundle diameters: 9.5mm - 104.7mm
    • Flexible strap
    • Bent tip for quick insertion into mounts
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application The very flexible wide-strap cable tie is used in heavy-duty applications where limited room is offered for the application. It is therefore a valued product in all areas of mass transit, as well as the construction and automotive industries.
    Colour Brown (BN)
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION WSS-PA46-BN
    Pack Content 300pcs.
    Package Content packed in bag
    Product Family WS-Series for heavy duty applications
    Product Group Cable ties for hose and convoluted tubing
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSS
    Variant Inside Serrated
    Bundle Diameter max (metric) 57.1mm
    Bundle ∅ min. 9.5mm
    Length (L) 230.0mm
    Min.Tensile Strength 535N
    Thickness (T) 1.4mm
    Width (W) 12.7mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026519593
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.29m
    Packaging 1 - Qty 300
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00667m³
    Packaging 1 - Weight (kg) 1.437001kg
    Packaging 1 - Width (m) 0.23m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 6.26kg
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121703
