22/12/2024

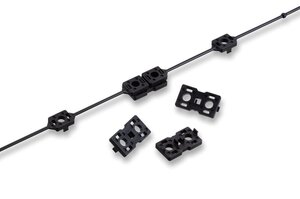

Fixing tie for screw fixation, inside serrated, ∅7.0-30mm, black, 100pcs.
Art.-No. 113-00068 | ESD135M-PPCOND-BK |  Details

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

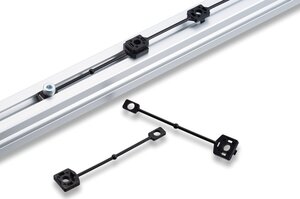

    Application This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.
    Colour Black (BK)
    Fixation Method Fixing hole
    Identification Plate Position none
    Material Conductive Polypropylene (PPCOND)
    Mounting Screw Type M3 Screw, M4 Screw
    PART DESCRIPTION ESD135M-PPCOND-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family ESD Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type ESD135M
    Variant Inside Serrated
    Bundle Diameter max (metric) 30mm
    Bundle ∅ min. 7.0mm
    Length (L) 261mm
    Min.Tensile Strength 110N
    Width (W) 3.5mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387114614
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.148kg
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0494m³
    Packaging 3 - Width (m) 0.315m
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
