08/11/2024

Fixing tie for hole (round), outside serrated, ∅3.0-30.0mm, natural, 100pcs.
Art.-No. 126-00071 | OS150-PM6-WPJ-PA66-NA | Details

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

1-piece fixing ties with arrowhead, with disc >

Base Data

Application	The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
Application Tool	MK3PNSP2, EVOcut, MK7P, MK20, EVO7SP, EVO7i
Colour	Natural (NA)
Fixation Method	arrowhead
Identification Plate Position	none
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	OS150-PM6-WPJ-PA66-NA
Pack Content	100pcs.
Package Content packed in	bag
Product Family	for round holes, sealed
Product Group	1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	OS150-PM6-WPJ

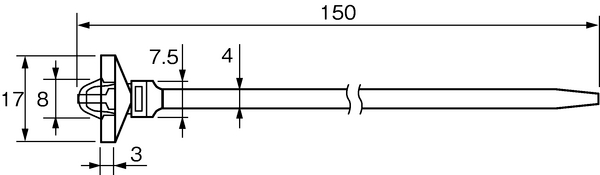

Product Dimensions


Bundle Diameter max (metric)	30.0mm
Bundle ∅ min.	3.0mm
Disc ∅	17.0mm
Length (L)	150mm
Min.Tensile Strength	100N
Thickness (T)	1.4mm
Width (W)	4.0mm
Width (W2)	8.0mm
for Hole ∅ (FH)	5.8 - 6.2 mm
for Panel Thickness min - max	0.6 - 2.3 mm

Downloads

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +80 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4944387950861

More Information

UNSPSC Key

39121703
