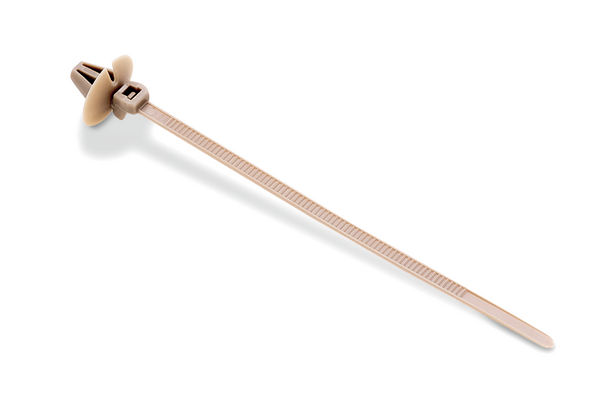

Fixing tie for hole (round), outside serrated, ∅4-20mm, beige, 9000pcs.
Art.-No. 126-00183
| PT2ASFT6.5PT0.7-1.5-E-PEEK-BGE
|
Details
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
- Cable tie head always situated in a defined position
- Features Material PEEK
- -55 °C to +240 °C operating temperature
- Excellent resistance against chemicals and gamma radiation
Request your individual offer now
Request quote
More products in this product group:
| Application | This fastening solution is especially suitable for high temperature areas like the engine bay or exhaust area. The outside serrated cable tie protects the insulation of cable bundles. |
| Colour | Beige (BGE) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyetheretherketone (PEEK) |
| PART DESCRIPTION | PT2ASFT6.5PT0.7-1.5-E-PEEK-BGE |

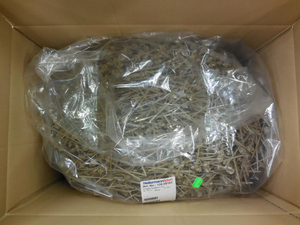

| Pack Content | 9000pcs. |
| Package Content packed in | bag |
| Product Family | With arrowhead, with disc, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, for round holes |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | PT2ASFT6.5PT0.7-1.5-E |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 20mm |
| Bundle ∅ min. | 4mm |
| Disc ∅ | 0.63" |
| Disc ∅ | 16.0mm |

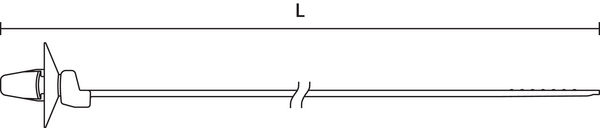

| Length (L) | 112.7mm |
| Min.Tensile Strength | 230N |
| Panel Thickness | 0.03 " – 0.06" |
| Panel Thickness max. | 0.7 – 1.5mm |
| Panel Thickness max. (imperial) | 0.06" |
| Panel Thickness min. (imperial) | 0.03" |
| Width (W) | 3.4mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.7 - 1.5 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Download
|
|
|
| GTIN-13 / EAN | 4031026460215 |
| Packaging 1 - Height (m) | 0.8m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 9000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.192m³ |
| Packaging 1 - Weight (kg) | 8.030411kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 9000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 7.116663kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 108000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 106.404kg |
| Packaging 4 - Width (m) | 0.8m |
