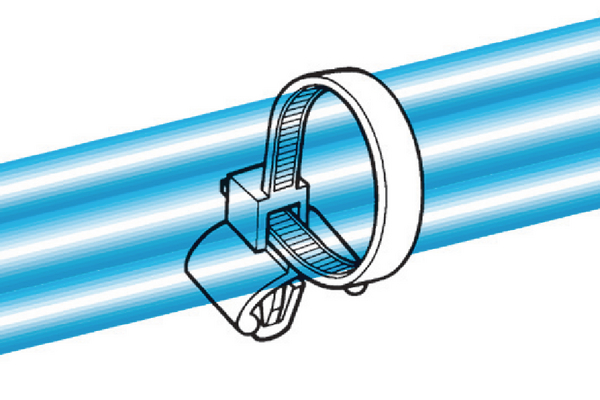

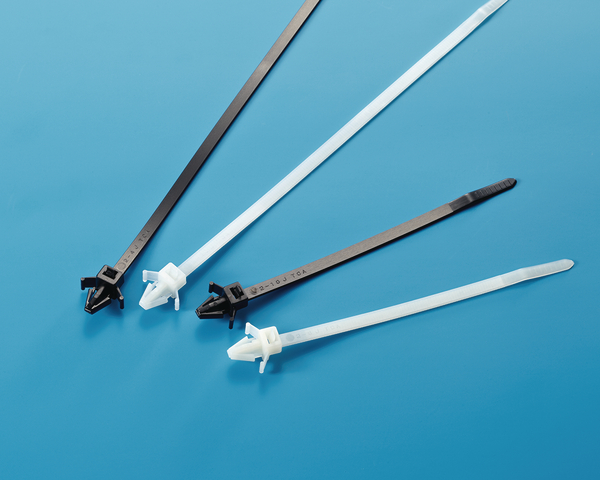

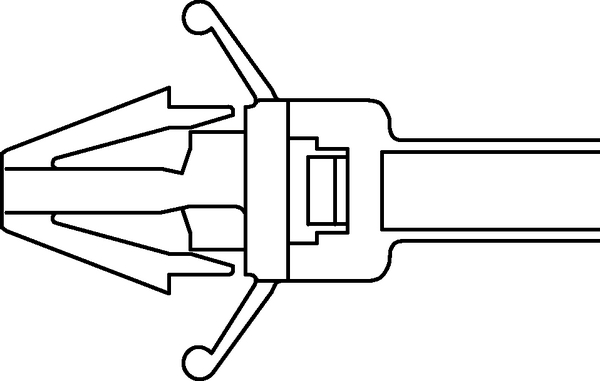

Fixing tie for hole (round), ∅1.5-26.0mm, natural, 100pcs.
Art.-No. 115-00078 | RT50SSF-PA66HS-NA |  Details

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Releasable and therefor reusable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION RT50SSF-PA66HS-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family for round holes, releasable
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) Yes
    Type RT50SSF
    Bundle Diameter max (metric) 26.0mm
    Bundle ∅ min. 1.5mm
    Height (H2) 9.2mm
    Length (L) 130.0mm
    Length (L2) 18.40mm
    Min.Tensile Strength 225N
    Thickness (T) 1.3mm
    Width (W) 4.8mm
    Width (W2) 9.4mm
    Width (W3) 18.0mm
    for Hole ∅ (FH) 6.0 - 7.5 mm
    for Panel Thickness min - max 0.7 - 2.6 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E64962
    GTIN-13 / EAN 4944387930931
    UNSPSC Key 39121703
