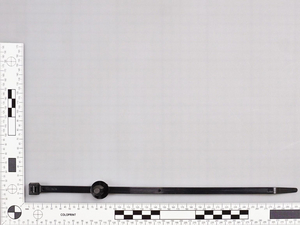

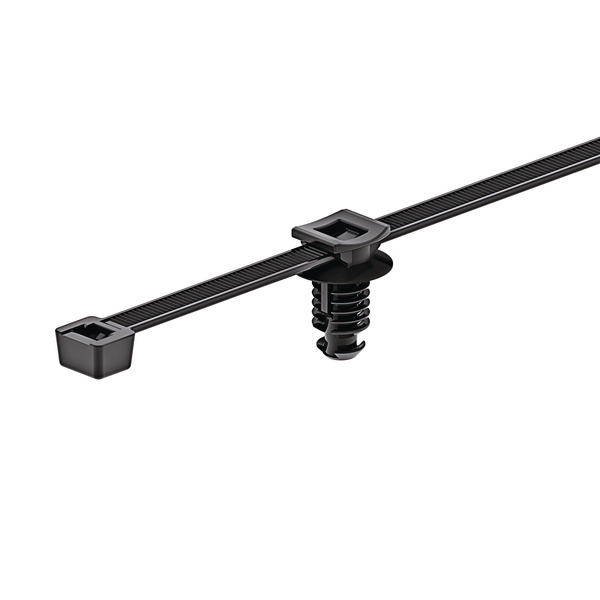

Fixing tie for hole (round), inside serrated, ∅8.0-80mm, black, 100pcs.
Art.-No. 156-01252
| T120IFT9-PA66HS/PA66HIRHS-BK
|
Details

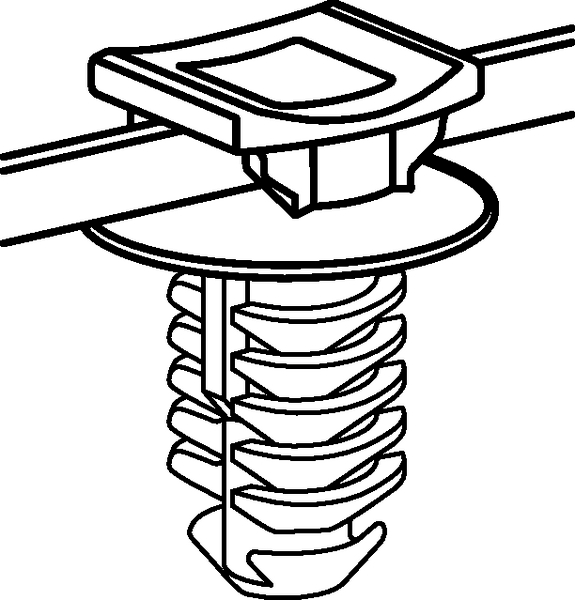

- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes

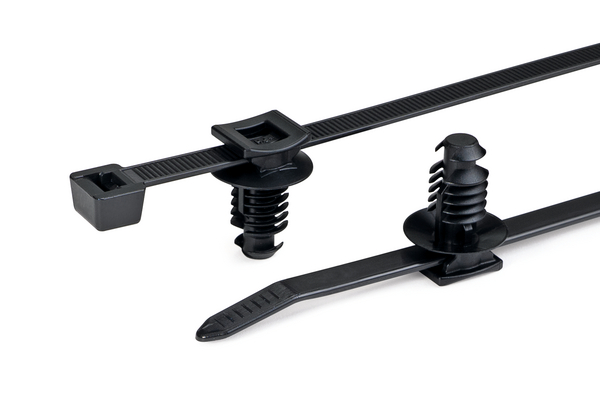

More products in this product group:
Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
Colour | Black (BK) |
Fixation Method | Fir Tree |
Identification Plate Position | none |
Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | T120IFT9-PA66HS/PA66HIRHS-BK |

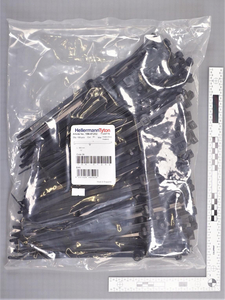

Pack Content | 100pcs. |
Package Content packed in | bag |
Product Family | Fir tree parts FT9 |
Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
Tie Closure | plastic pawl |
Type | T120IFT9 |
Variant | Inside Serrated |

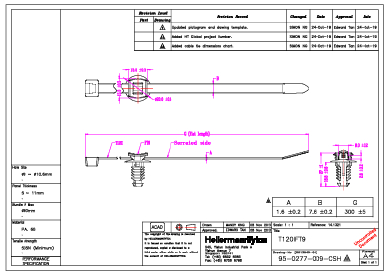

Bundle Diameter max (metric) | 80mm |
Bundle ∅ min. | 8.0mm |
Cable Tie Head Height (metric) | 7.7mm |
Cable Tie Head Length (metric) | 10.2mm |
Cable Tie Head Width (metric) | 13.0mm |
Disc ∅ | 20.0mm |
Height (H) | 27mm |
Height (H2) | 18.8mm |
Length (L) | 300.0mm |
Length (L2) | 15.0mm |
Min.Tensile Strength | 535N |
Panel Thickness max. | 5.0 - 11. 0mm |
Thickness (T) | 1.5mm |
Width (W) | 7.6mm |
Width (W2) | 13.0mm |
Width (W3) | 20mm |
for Hole ∅ (FH) | 9.0 - 10.6 mm |
for Panel Thickness min - max | 5 - 11 mm |
|
|
GTIN-13 / EAN | 4031026485928 |
Packaging 1 - Height (m) | 0.065m |
Packaging 1 - Length (m) | 0.33m |
Packaging 1 - Qty | 100 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00644m³ |
Packaging 1 - Weight (kg) | 0.612301kg |
Packaging 1 - Width (m) | 0.3m |
Packaging 3 - Height (m) | 0.218m |
Packaging 3 - Length (m) | 0.599m |
Packaging 3 - Qty | 1000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0522m³ |
Packaging 3 - Weight (kg) | 6.873kg |
Packaging 3 - Width (m) | 0.4m |
Packaging 4 - Height (m) | 1.234m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 20000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.185m³ |
Packaging 4 - Weight (kg) | 158.46kg |
Packaging 4 - Width (m) | 0.8m |
