Fixing tie for hole (round), outside serrated, ∅5.0-105.0mm, black, 100pc.
Art.-No. 156-01561
| T120ROSFT9CLG-PA66HS/PA66HIRHSUV-BK
|
Details

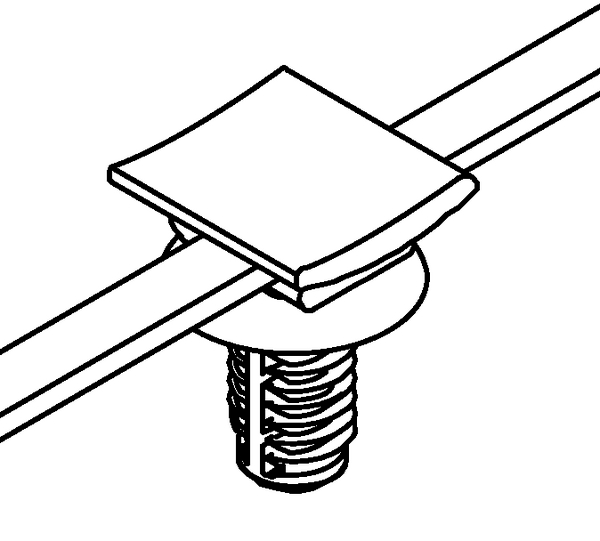

- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T120ROSFT9CLG-PA66HS/PA66HIRHSUV-BK |
| Pack Content | 100pc. |
| Package Content packed in | bag |
| Product Family | Fir tree parts FT9 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T120ROSFT9CLG |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 105.0mm |
| Bundle ∅ min. | 5.0mm |
| Height (H) | 29.6mm |
| Height (H2) | 18.8mm |
| Length (L) | 385.0mm |
| Min.Tensile Strength | 535N |
| Panel Thickness | 0.09 - 0.50" |
| Panel Thickness max. | 1.0 - 12.7mm |
| Panel Thickness max. (imperial) | 0.50" |
| Panel Thickness min. (imperial) | 0.04" |
| Thickness (T) | 1.8mm |
| Width (W) | 7.6mm |
| for Hole ∅ (FH) | 8.75 - 9.25 mm |
| for Panel Thickness min - max | 1 - 12.7 mm |
| for Panel Thickness min - max | 0 - 0.5 " |
