Fixing tie for hole (round), inside serrated, ∅5.0-31.0mm, black, 100pcs.
Art.-No. 156-00341
| T30RFT5-PA66HSUV/PA66HIRHS-BK
|
Details
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP |
| Colour | Black (BK) |

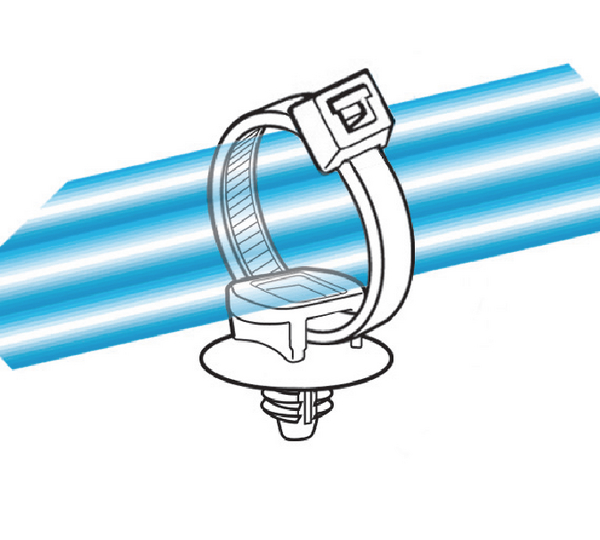

| Description | These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt. |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T30RFT5-PA66HSUV/PA66HIRHS-BK |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Fir tree parts FT5 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T30RFT5 |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 31.0mm |
| Bundle ∅ min. | 5.0mm |
| Disc ∅ | 16mm |
| Height (H) | 1.2mm |
| Height (H2) | 6.9mm |
| Hole Depth | 6.9mm |
| Length (L) | 152mm |
| Length (L2) | 13.2mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| Width (W2) | 9.0mm |
| Width (W3) | 0mm |
| for Hole ∅ (FH) | 4.5 - 5.0 mm, M6 |
| for Panel Thickness min - max | 0.7 - 3 mm |
