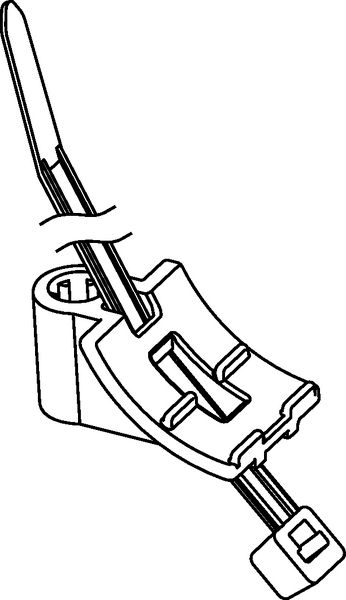

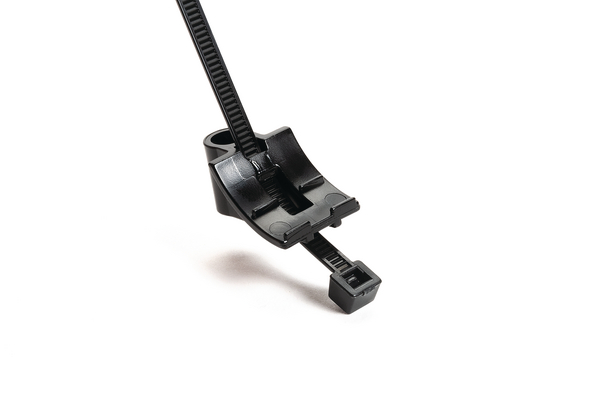

Fixing tie for stud, inside serrated, ∅20.0-40.0mm, black, 250pcs.
Art.-No. 156-00911 | T50ISBS520-40-PA66HS/PA66HIRHS-BK |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ISBS520-40-PA66HS/PA66HIRHS-BK
    Pack Content 250pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type T50ISBS520-40
    Variant Inside Serrated
    Bundle Diameter max (metric) 40.0mm
    Bundle ∅ min. 20.0mm
    Length (L) 300.0mm
    Min Stud Length 0.56"
    Min Stud Length 14.2mm
    Min.Tensile Strength 222.0N
    Stud ∅ 0.20"
    Stud ∅ 5.0 mm
    Width (W) 4.6mm
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026441986
    Packaging 3 - Weight (kg) 9.72kg
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
