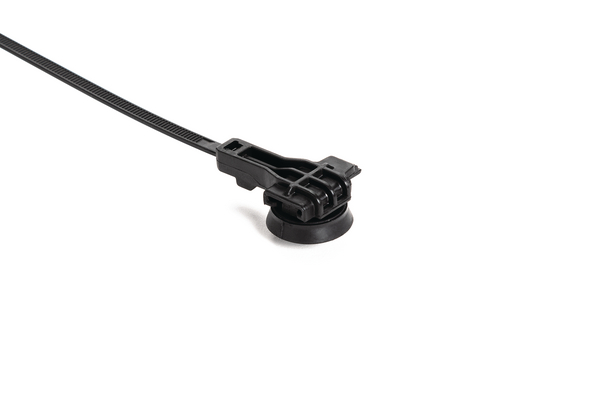

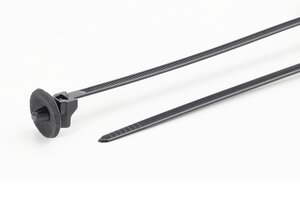

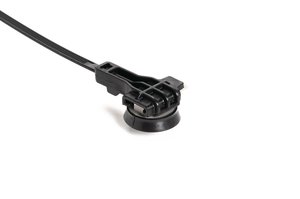

Fixing tie for hole (round), ∅2-50.0mm, black, 2000pcs.
Art.-No. 156-02545 | T50ROS25BCCSRAH-PA66HIRHSUV/TPE-BK Details

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions
  • Seal protects against splash water
  • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
Show more

Request your individual offer now

Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
PART DESCRIPTION T50ROS25BCCSRAH-PA66HIRHSUV/TPE-BK
Pack Content 2000pcs.
Package Content packed in bag
Product Family for round holes, sealed
Product Group 2-piece fixing ties with arrowhead, with disc
Tie Closure plastic pawl
Type T50ROS25BCCSRAH
Bundle Diameter max (metric) 50.0mm
Bundle ∅ min. 2mm
Height (H) 17.9mm
Length (L) 228mm
Min.Tensile Strength 222N
Offset Length 25.0mm
Panel Thickness 0.02 - 0.04"
Panel Thickness max. 0.6 - 1.1mm
Panel Thickness max. (imperial) 0.04"
Panel Thickness min. (imperial) 0.02"
Width (W) 28.4mm
for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
for Panel Thickness min - max 0.6 - 1.1 mm
for Panel Thickness min - max 0 - 0 "
CE Certification No
Operating Temperature -40 °C to +110 °C, -35 °C to +90 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026726304
Packaging 1 - Weight (kg) 0.005kg
Packaging 3 - Height (m) 0.352m
Packaging 3 - Length (m) 0.572m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0703
Packaging 3 - Width (m) 0.349m
UNSPSC Key 39121717
