Fixing tie for hole (round)/for hole (hex), outside serrated, ∅1.5-35.0mm, natural, 500pcs.
Art.-No. 126-00065
| T50SOSSFT6.5E-MS-MD-PA66HS-NA
|
Details

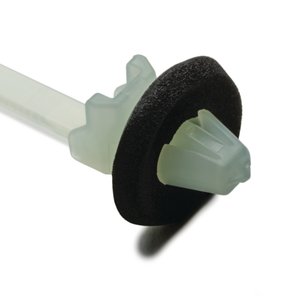

- One-piece fixing ties with cellular rubber disc
- Especially suitable for door and tailgate harnesses used for car body applications
- Made from PA66 heat-stabilised material
- Cellular rubber disc minimises ingress of dust, dirt and splash water

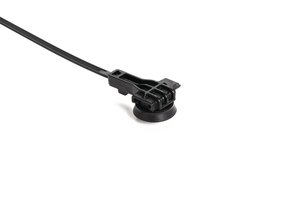

More products in this product group:
Application | The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water. |
Colour | Natural (NA) |
Fixation Method | arrowhead |
Identification Plate Position | none |
Key product features | products for automatic tools |
Material | Polyamide 6.6, heat stabilised (PA66HS) |
PART DESCRIPTION | T50SOSSFT6.5E-MS-MD-PA66HS-NA |
Pack Content | 500pcs. |
Package Content packed in | bag |
Product Family | for round holes, sealed |
Product Group | 1-piece fixing ties with arrowhead, with disc |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50SOSSFT6.5E-MS-MD |
Variant | Outside Serrated |
Bundle Diameter max (metric) | 35.0mm |
Bundle ∅ min. | 1.5mm |
Disc ∅ | 0.63" |
Disc ∅ | 16.0mm |
Length (L) | 163.0mm |
Min.Tensile Strength | 180N |
Panel Thickness | 0.03 - 0.06" |
Panel Thickness max. | 0.7 - 1.6mm |
Panel Thickness max. (imperial) | 0.06" |
Panel Thickness min. (imperial) | 0.03" |
Thickness (T) | 1.3mm |
Width (W) | 4.6mm |
for Hole ∅ (FH) | 6.1 - 6.6 mm (hexagonal), 6.25 - 6.75 mm |
for Panel Thickness min - max | 0.7 - 1.6 mm |
for Panel Thickness min - max | 0 - 0.1 " |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
GTIN-13 / EAN | 4031026279046 |
Packaging 1 - Height (m) | 0.09m |
Packaging 1 - Length (m) | 0.46m |
Packaging 1 - Qty | 500 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.01842m³ |
Packaging 1 - Weight (kg) | 0.8495kg |
Packaging 1 - Width (m) | 0.445m |
Packaging 3 - Height (m) | 0.368m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 3000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.083m³ |
Packaging 3 - Weight (kg) | 5.902228kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.249m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 36000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.199m³ |
Packaging 4 - Weight (kg) | 91.86kg |
Packaging 4 - Width (m) | 0.8m |
