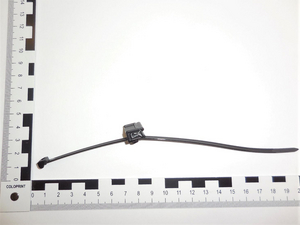

Fixing tie for edge, outside serrated, ∅1.0-45.0mm, black, 500pcs.
Art.-No. 156-00010 | T50ROSEC21-PA66HS/PA66HIRHS-BK | Details

2-piece fixing tie with edge clip 1-3mm, side fixing.

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
For edges of 1 – 3 mm

Package size

100 pcs.

500 pcs.

Add to watchlist

Request your individual offer now

Request quote

Downloads CAD-Download

More products in this product group:

2-piece fixing ties for edges >

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Anti rotation (Yes / No)	YES
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method	EdgeClip, sideway, assembled, 2 piece
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Internet Customer Notice	Scroll down for alternative automation-ready products.
Key product features	for narrow bundling
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
No. of sides for tie attachment	2
PART DESCRIPTION	T50ROSEC21-PA66HS/PA66HIRHS-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group	2-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Type	T50ROSEC21
Variant	Outside Serrated

Product Dimensions


Bundle Diameter max (metric)	45.0mm
Bundle ∅ min.	1.0mm
Height (H)	1.3mm
Height (H2)	13.4mm
Length (L)	200mm
Length (L2)	15.0mm
Min.Tensile Strength	225N
Panel Thickness max. (imperial)	0.117"
Panel Thickness min. (imperial)	0.039"
Thickness (T)	1.3mm
Width (W)	4.6mm
Width (W2)	0.394"
Width (W2)	10.0mm
for Panel Thickness min - max	1 - 3 mm
for Panel Thickness min - max	0 - 0.1 "

Downloads

Specifications

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

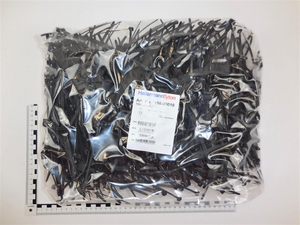

Logistics and Packaging


GTIN-13 / EAN	4031026240619
Packaging 1 - Height (m)	0.09m
Packaging 1 - Length (m)	0.815m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.02237m³
Packaging 1 - Weight (kg)	1.461kg
Packaging 1 - Width (m)	0.305m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	12.617312kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.249m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.199m³
Packaging 4 - Weight (kg)	172.44kg
Packaging 4 - Width (m)	0.8m
