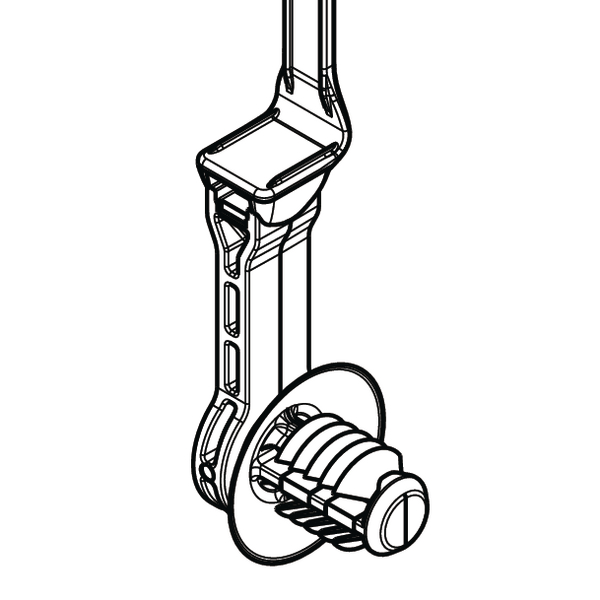

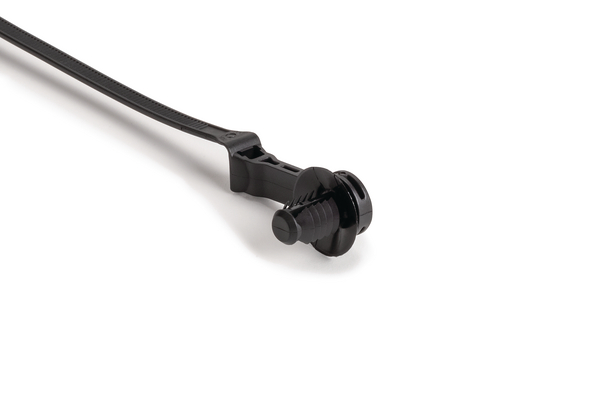

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, black, 3000
Art.-No. 157-00231 | T50ROSFT8M10SO25R-PA66HIRHSUV-BK | Details

Fir tree mounts are designed to provide low insertion force and high extraction force.

Bundling and fixing solution
Ideal combination of materials and design
Different positions of the fixing anchor are available to fit installation space

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

1-piece fixing ties with fir tree, with disc, with stand-off, for round holes >

Base Data

Colour	Black (BK)
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T50ROSFT8M10SO25R-PA66HIRHSUV-BK
Pack Content	3000
Package Content packed in	carton
Product Family	With offset 12.5 and 25.0 mm
Product Group	1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
Releasable Closure (Yes/No)	No
Type	T50ROSFT8M10SO25R
Variant	Outside Serrated

Product Dimensions

Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	2.0mm
Disc ∅	0.75"
Disc ∅	19.0mm
Height (H)	5.8mm
Length (L)	238.0mm
Min.Tensile Strength	225N
Offset Length	25.0mm
Panel Thickness	0.02 - 0.21"
Panel Thickness max.	0.6 - 5.5mm
Panel Thickness max. (imperial)	0.21"
Panel Thickness min. (imperial)	0.02"
Width (W)	5.08mm
for Hole ∅ (FH)	7.6 - 8.4 mm
for Panel Thickness min - max	0.6 - 5.5 mm
for Panel Thickness min - max	0 - 0.2 "

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging

GTIN-13 / EAN

4031026652733

More Information

UNSPSC Key

39121703
