04/11/2024

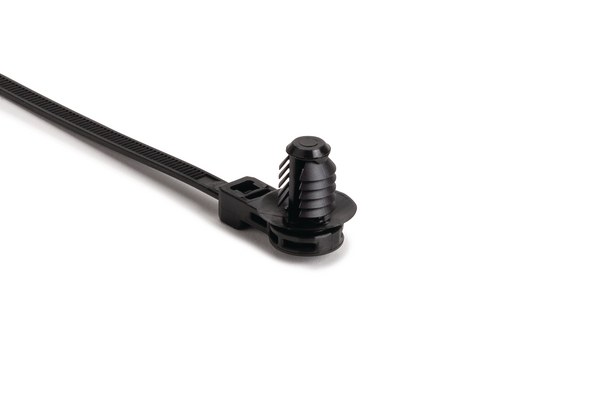

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, black, 3000pcs.
Art.-No. 157-00503 | T50ROSM10SO12.5A-PA66HIRHSUV-BK |  Details

Fir tree mounts are designed to provide low insertion force and high extraction force.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSM10SO12.5A-PA66HIRHSUV-BK
    Pack Content 3000pcs.
    Package Content packed in carton
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Type T50ROSM10SO12.5A
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 0.67"
    Disc ∅ 17.0mm
    Height (H) 21.0mm
    Length (L) 216.5mm
    Min.Tensile Strength 225N
    Offset Length 12.5mm
    Panel Thickness 0.02 - 0.23"
    Panel Thickness max. 0.6 - 6.0mm
    Panel Thickness max. (imperial) 0.23"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 4.7mm
    for Hole ∅ (FH) 7.6 - 8.4 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026650593
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 6.990001kg
    UNSPSC Key 39121703
