07/11/2024

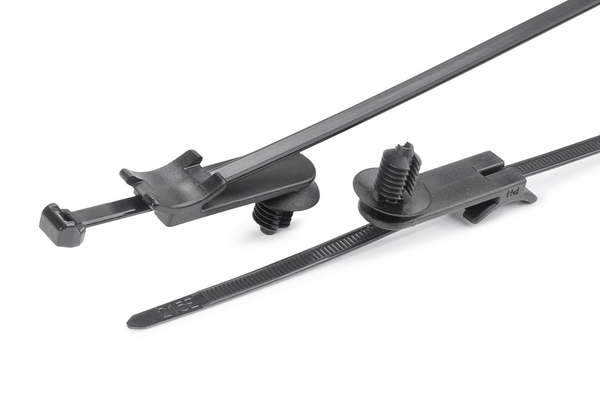

Fixing tie for hole (round), outside serrated, ∅8-45mm, black, 500pcs.
Art.-No. 156-01228 | T50ROSSOC3FT6LG-PA66HS/PA66HIRHS-BK |  Details

COW Clip with Cable Tie Assembly

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Black (BK)
    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSSOC3FT6LG-PA66HS/PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in pcs.
    Product Family Fir tree parts FT6
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type T50ROSSOC3FT6LG
    Variant Outside Serrated
    Bundle Diameter max (metric) 45mm
    Bundle ∅ min. 8mm
    Disc ∅ 16.0mm
    Length (L) 200mm
    Min.Tensile Strength 225N
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.4 - 7.1 mm
    for Panel Thickness min - max 0.8 - 6 mm
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026481074
    UNSPSC Key 39121717
    Show all
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
