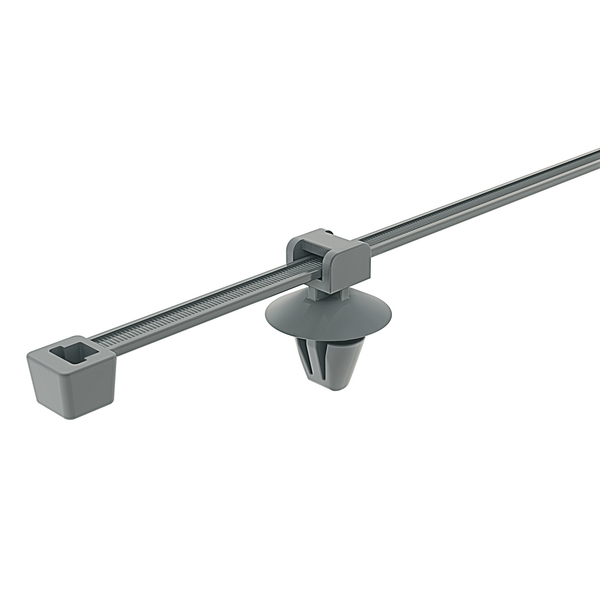

Fixing tie for hole (round), ∅50.0mm, grey, 500pcs.
Art.-No. 156-01070 | T50RSFT8.5-PA46-GY | Details

Being a two-piece assembly allows the tie head to be located in the most convenient position.

Pre-assembled 2-piece fixing tie with arrowhead foot part
Cable tie head can be moved after bundling
Easy to assemble without the need for a tool
Arrowhead simply locks into place
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties with arrowhead, with disc >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Application Tool	MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour	Grey (GY)
Fixation Method	arrowhead
Identification Plate Position	none
Material	Polyamide 4.6 (PA46)
PART DESCRIPTION	T50RSFT8.5-PA46-GY
Pack Content	500pcs.
Package Content packed in	bag
Product Family	2-piece fixing ties with arrowhead, with disc, for round holes
Product Group	2-piece fixing ties with arrowhead, with disc
Tie Closure	plastic pawl
Type	T50RSFT8.5

Product Dimensions

Bundle Diameter max (metric)	50.0mm
Length (L)	200.0mm
Min.Tensile Strength	225N
Width (W)	4.6mm
for Hole ∅ (FH)	8.5 mm
for Panel Thickness min - max	2.5 - 3.5 mm

Downloads

RoHS datasheet

Download

Specifications

Operating Temperature	-40 °C to +150 °C
Operating Temperature Foot Part (Metric)	-40 °C to +150 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026461809

More Information

UNSPSC Key

39121717
