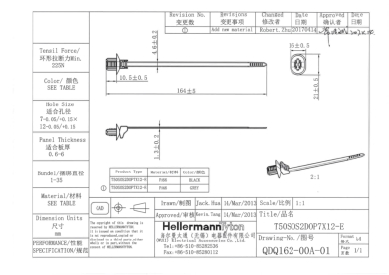

Fixing tie for hole (oval), outside serrated, ∅1.0-35.0mm, black, 500pcs.
Art.-No. 157-01105
| T50SOS2DOP7X12-E-PA66HS-BK
|
Details
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP |
| Cable Tie | Polyamide 6, heat stabilised (PA6HS) |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SOS2DOP7X12-E-PA66HS-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 1-piece fixing ties with fir tree, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50SOS2DOP7X12-E |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 35.0mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16,0 x 21,0mm |
| Fixing Hole Shape | Oval |
| Length (L) | 164.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness | 0.02 " – 0.24" |
| Panel Thickness max. | 0.6 – 6.0mm |
| Panel Thickness max. (imperial) | 0.24" |
| Panel Thickness min. (imperial) | 0.023" |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
