22/12/2024

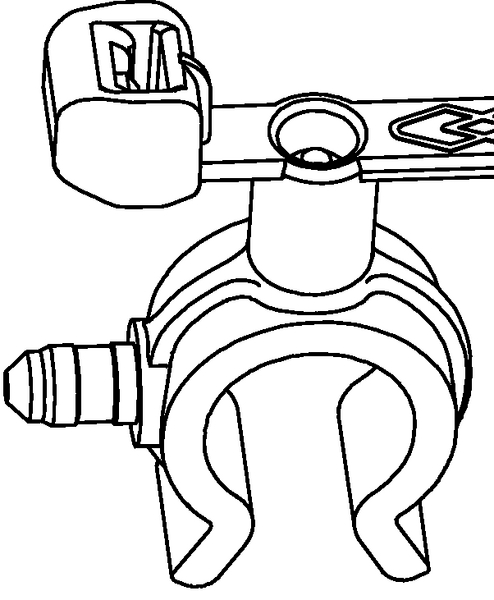

Fixing tie with pipe/tube holder, outside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-03039 | T50SOSASVCOC9-11B-PA66HIRHS-BK |  Details

    • Simply clip on a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Ideally used in the Automotive Industry
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These outside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SOSASVCOC9-11B-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Tie Closure plastic pawl
    Type T50SOSASVCOC9-11B
    Variant Outside Serrated with AntiSlip Engraving
    Attach to Ø 9.0 - 11.0
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.3mm
    Length (L) 155.0mm
    Min.Tensile Strength 200N
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    Width (W2) 8.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026645742
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02844m³
    Packaging 1 - Weight (kg) 1.064135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
