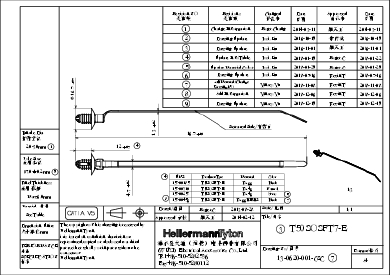

Fixing tie for hole (round), ∅2.0-30.0mm, grey, 500pcs.
Art.-No. 157-00257 | T50SOSFT7E-PA46-GY | Details

Fir tree foot parts can be used for a variety of panel thicknesses.

Cable tie head always situated in defined position
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

1-piece fixing ties with fir tree, with disc, for round holes >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Colour	Grey (GY)
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Material	Polyamide 4.6 (PA46)
PART DESCRIPTION	T50SOSFT7E-PA46-GY
Pack Content	500pcs.
Package Content packed in	bag
Product Family	Fir tree parts FT7
Product Group	1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50SOSFT7E

Product Dimensions


Bundle Diameter max (metric)	30.0mm
Bundle ∅ min.	2.0mm
Disc ∅	16.5mm
Length (L)	165.0mm
Thickness (T)	1.3mm
Width (W)	4.7mm
for Hole ∅ (FH)	6.8 - 7.2 mm
for Panel Thickness min - max	0.6 - 6 mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026545202

More Information

UNSPSC Key

39121703
