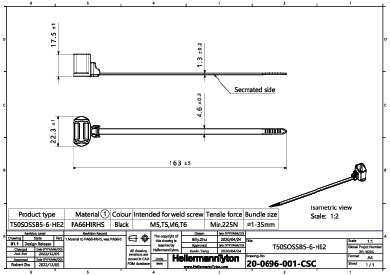

Fixing tie for stud, ∅1.0-35.0mm, black, 2000pcs.
Art.-No. 157-00501 | T50SOSSB5-6-HE2-PA66HIRHSUV-BK |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SOSSB5-6-HE2-PA66HIRHSUV-BK
    Pack Content 2000pcs.
    Package Content packed in bag
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSSB5-6-HE2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ min. 1.0mm
    Length (L) 163.0mm
    Min.Tensile Strength 225N
    Stud ∅ M5, M6
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026650272
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
