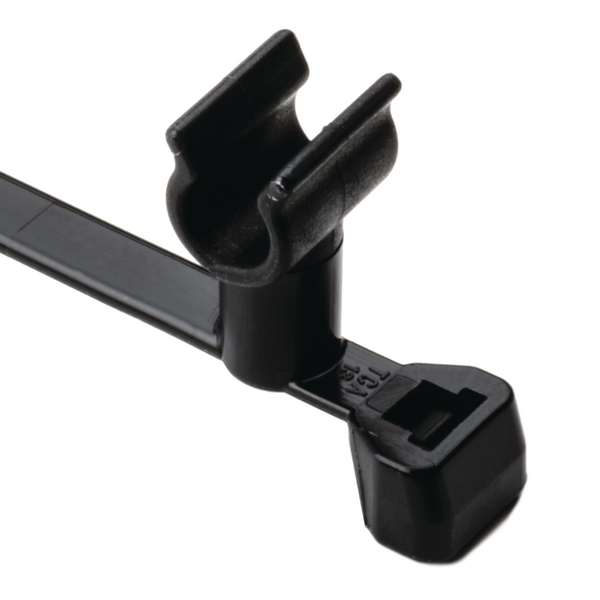

Fixing tie for cable bundles/with pipe/tube holder, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-01516 | T50SVC5-PA66HS-BK Details

  • Simply clip on a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • Inside serrated cable tie
  • Ideally used in the Automotive Industry
Show more

Request your individual offer now

Application The fasteners interconnect two different bundles of goods, of various size and type. The mobility of the fixing provide a secure grip and protects the cables or bundles, even in difficult conditions.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features rotatable, for multiple routing, removable
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SVC5-PA66HS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
Releasable Closure (Yes/No) No
Type T50SVC5
Attach to Diameter 0.18 - 0.20 "
Attach to Ø 4.5 - 5.2
Bundle Diameter max (metric) 35.0mm
Bundle ∅ min. 2.0mm
Length (L) 155.0mm
Min.Tensile Strength 222N
Width (W) 4.7mm
CE Certification No
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026520162
Packaging 3 - Type box
Packaging 3 - Weight (kg) 7.38kg
UNSPSC Key 39121717
