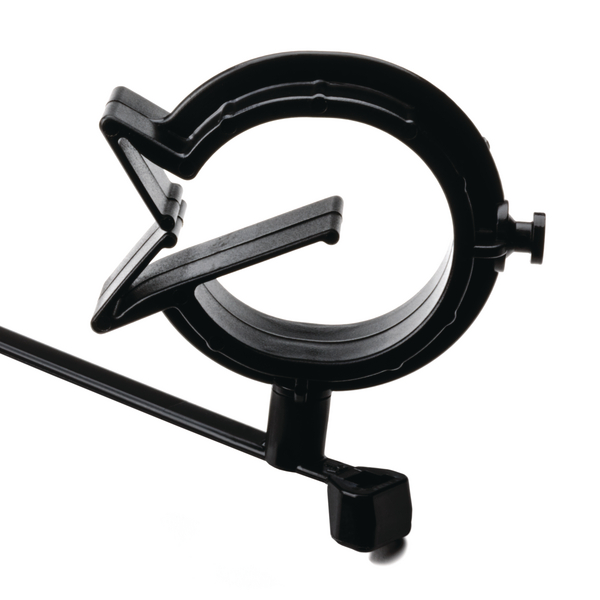

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-01341 | T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Tie Closure plastic pawl
    Type T50SVCOC19-24.5
    Attach to Diameter 0.75 - 0.96 "
    Attach to Ø 19.0 - 24.5
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 155.0mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 4031026505312
    Packaging 3 - Type box
    Packaging 3 - Weight (kg) 10.54kg
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
