Fixing tie with pipe/tube holder, ∅2-35mm, black, 500pcs.
Art.-No. 156-01419 | T50SVCOC9-11A-PA66HS/PA66HIRHS-BK | Details

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties with pipe clip >

Base Data

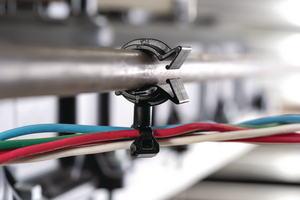

Application	These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
Application Tool	ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour	Black (BK)
Fixation Method	Omega Clip
Identification Plate Position	none
Key product features	lockable, rotatable
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50SVCOC9-11A-PA66HS/PA66HIRHS-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Group	2-piece fixing ties with pipe clip
Type	T50SVCOC9-11A

Product Dimensions

Attach to Ø	9 - 11
Bundle Diameter max (metric)	35mm
Bundle ∅ min.	2mm
Height (H)	6.0mm
Length (L)	155.0mm
Min.Tensile Strength	222N
Thickness (T)	1.35mm
Width (W)	4.7mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026510651

More Information

UNSPSC Key

39121702
