Fixing tie for stud, inside serrated, ∅2.0-75.0mm, black, 500pcs.
Art.-No. 156-03024 | T80ISB5-6-PA66HIRHS/PA66HS-BK |  Details

The

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • "Soft-push" design for tool-free installation
    • for welded studs M5 / M6 / T5 / T6
    • SB5-6 allow lateral tolerance for fixing point
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T80ISB5-6-PA66HIRHS/PA66HS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type T80ISB5-6
    Bundle Diameter max (metric) 75.0mm
    Bundle ∅ min. 2.0mm

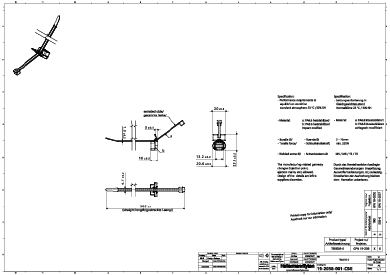

    Height (H) 10.0mm
    Length (L) 305.0mm
    Length (L2) 23.8mm
    Min.Tensile Strength 355N
    Stud ∅ M5, M6
    Thickness (T) 1.3mm
    Width (W) 4.7mm
    Width (W2) 20.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026645476
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03074m³
    Packaging 1 - Weight (kg) 1.601597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
