2-Way Outlet Shapes, VG style
Art.-No. 402-06033 | 206-1-B7W8-PO-X-BK | Details

203-1 supplied / fully recovered.

Mechanical tension relief in cable harnesses

Package size

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	206-1-B7W8-PO-X-BK
Pack Content	100pcs.
Package Content packed in	bag
Product Family	Helashrink 200 Series
Product Group	2-Way Outlet Shapes, VG style
Type	206-1-B7W8
Variant	For 2-core cables

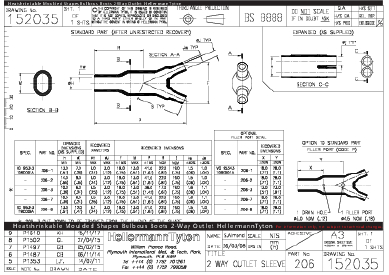

Product Dimensions


Flexibility	semi rigid
HW ± 30 %	1.5mm
JW nom.	1mm
JW ± 30 %	1.0mm
JW/KW ± 30%	1mm
P ± 10 %	41mm
P ±10%=overall length	41mm
R nom.	22mm
R ± 10 %	19mm
S nom.	19mm
∅H max. b	6mm
∅H min. a	13mm
∅J max. b	3mm
∅J min. a	7mm
∅J/K max. b	3mm
∅J/K min. a	7mm
∅K max. b	3mm
∅K min. a	7mm

Downloads

Specifications

Adhesive	W8
Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant (Article 4 - 2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-50 °C to +80 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


GTIN-13 / EAN	5022660444272
Packaging 1 - Height (m)	0.015m
Packaging 1 - Length (m)	0.13m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0002m³
Packaging 1 - Weight (kg)	0.004001kg
Packaging 1 - Width (m)	0.1m

More Information

UNSPSC Key

39121721
