2-Way Outlet Shapes, VG style
Art.-No. 402-12001 | 212-1-B7-PO-X-BK | Details

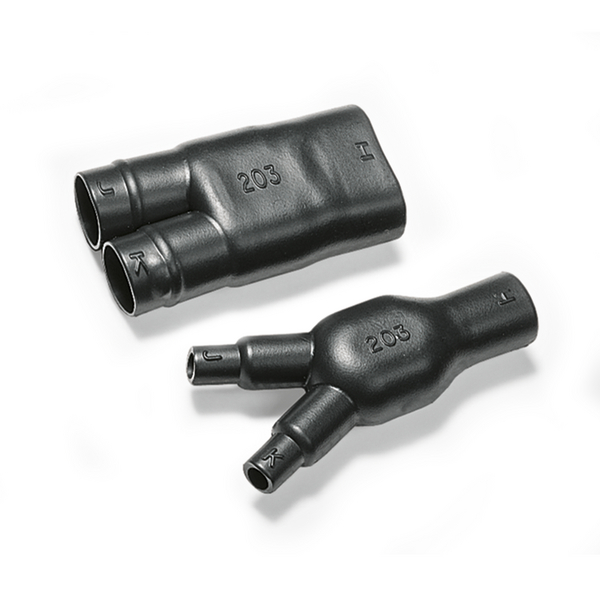

203-1 supplied / fully recovered.

Mechanical tension relief in cable harnesses

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	212-1-B7-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 200 Series
Product Group	2-Way Outlet Shapes, VG style
Type	212-1-B7
Variant	For 2-core cables

Product Dimensions


Flexibility	semi rigid
HW ± 20 %	2.3mm
HW ± 30 %	2.5mm
JW nom.	2mm
JW/KW ± 30%	2mm
P ± 10 %	136mm
R nom.	83mm
R ± 10 %	63mm
S nom.	63mm
∅H max. b	8mm
∅H min. a	14.5mm
∅J max. b	5.5mm
∅J min. a	8.5mm
∅J/K max. b	5.5mm
∅J/K min. a	8.5mm
∅K max. b	5.5mm
∅K min. a	8.5mm

Downloads

RoHS datasheet

Download

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Nato number	5970-00-971-6380, 5970-99-718-7809
Operating Temperature	-50 °C to +80 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

5022660445996

More Information

UNSPSC Key

39121721
