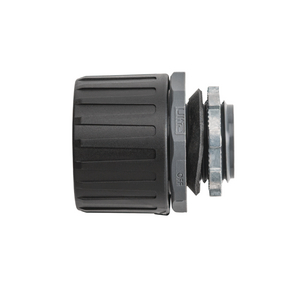

HGU54-S-M50B-PA66-BK
Art.-No. 166-90976 | HGU54-S-M50B-PA66-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION HGU54-S-M50B-PA66-BK
    Pack Content 1pc.
    Package Content packed in pack
    Type HGU54-S-M50B
    Variant Straight
    Length (L) 65.0mm
    Nominal ∅ 2.13"
    Nominal ∅ 54.0mm
    Outside Ø (OD) 73.0mm
    Outside ∅ (OD) 2.87"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E247502
    UV-Stabilised No
    GTIN-13 / EAN 4031026656731
    UNSPSC Key 39131601
