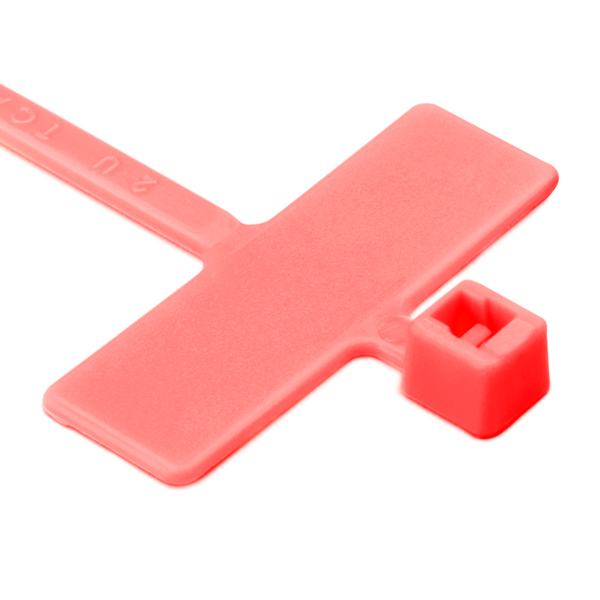

Identification ties and plates for marking cable bundles
Art.-No. 111-81812
| IT18R-PA66-RD
|
Details
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
More products in this product group:
| Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
| Colour | Red (RD) |
| Fixation Method | None |
| Identification Plate Position | attached to bundle |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | IT18R-PA66-RD |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | IT Ties |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Labels | TAGN1L-9372 |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | IT18R |
| Variant | Inside Serrated |
| With label space | Yes |
|
|
| Bundle Diameter max (metric) | 19.0mm |
| Bundle ∅ min. | 4.8mm |
| Height (H) | 8.0mm |
| Length (L) | 100.0mm |
| Min.Tensile Strength | 80N |
| Outside ∅ max (OD max.) | 22.00mm |
| Outside ∅ max. | 0.87" |
| Outside ∅ min. | 0.24" |
| Outside ∅ min. (OD min.) | 6.00mm |
| Print Method | manual marking |
| Width (W) | 25.0mm |
| Width (W2) | 0.09" |
| Width (W2) | 2.4mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | CAGE Code 53421, UL-ZODZ2.E64139 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| US Gov. Designation | MS3368-5-2E, SAE-AS33681 |
| UV-Stabilised | No |
