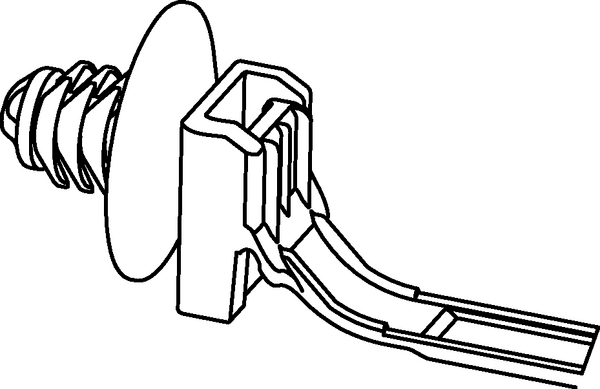

Fixing tie for hole (round), outside serrated, ∅3.0-30.0mm, black, 100pcs.
Číslo dílu 126-00057 | OS160FT5-PA66HSUV-BK |  Podrobnosti na

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Parts with an anti-slip engraving, such as the T30SOS-AS-FT5-E, to prevent the harness from slipping sideways
    ukázat více
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads

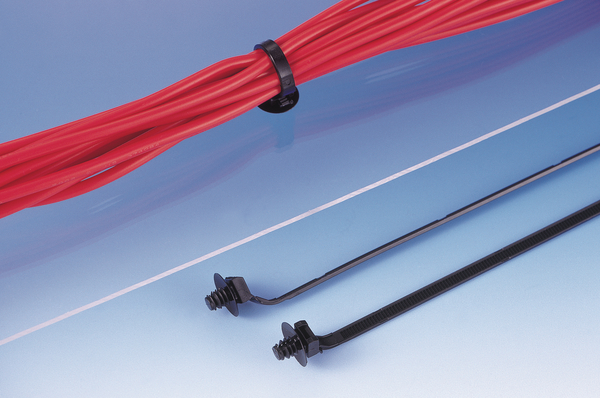

    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    PART DESCRIPTION OS160FT5-PA66HSUV-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT5
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type OS160FT5
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 3.0-30.0mm
    Bundle ∅ min. 3.0mm
    Disc ∅ 13.0mm
    Hole Depth 5.6mm
    Length (L) 163.0mm
    Length (L2) 11.40mm
    Min.Tensile Strength 100N
    Thickness (T) 1.4mm
    Weight/Unit 0.00107kg
    Width (W) 4.0mm
    Width (W2) 5.4mm
    for Hole ∅ (FH) 4.5 - 5.0 mm
    for Panel Thickness min - max 1.6 - 3.2 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387948356
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.107001kg
    Packaging 3 - Height (m) 0.315m
    Packaging 3 - Length (m) 0.505m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0589m³
    Packaging 3 - Weight (kg) 3.205025kg
    Packaging 3 - Width (m) 0.37m
    Packaging 4 - Height (m) 1.089m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.045m³
    Packaging 4 - Weight (kg) 59.46kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
