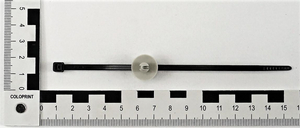

Fixing tie for hole (round), inside serrated, ∅5.0-34.0mm, black/grey, 500pcs.
Číslo dílu 150-55940
| T30RFT5-PA66HS-BK/GY
|
Podrobnosti na

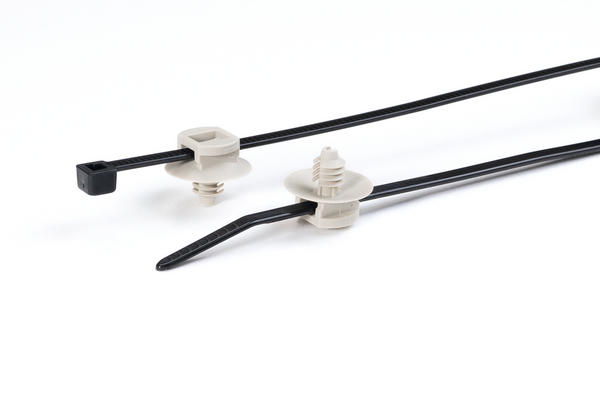

- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK), Grey (GY) |
| Description | These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt. |
| Fixation Method | Fir Tree |
| Foot Part | Polyamide 6.6 (PA66) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T30RFT5-PA66HS-BK/GY |

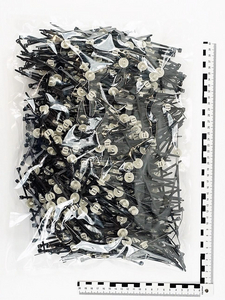

| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | Fir tree parts FT5 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Short Description | 2-Piece Fixing Tie with Fir Tree and Disc 150x3.5 black/grey |
| Tie Closure | plastic pawl |
| Type | T30RFT5 |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 34.0mm |
| Bundle ∅ | 5.0-34.0mm |
| Bundle ∅ min. | 5.0mm |
| Disc ∅ | 16.0mm |
| Height (H) | 1.2mm |
| Height (H2) | 6.9mm |
| Length (L) | 150mm |
| Length (L2) | 11.6mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.1mm |
| Weight/Unit | 0.0011kg |
| Width (W) | 3.5mm |
| Width (W2) | 9.0mm |
| for Hole ∅ (FH) | 4.5 - 5.0 mm |
| for Panel Thickness min - max | 0.7 - 3 mm |
Stáhnout
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026121451 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 0.571815kg |
| Packaging 1 - Width (m) | 0.41m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 6.53815kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 99.48kg |
| Packaging 4 - Width (m) | 0.8m |
