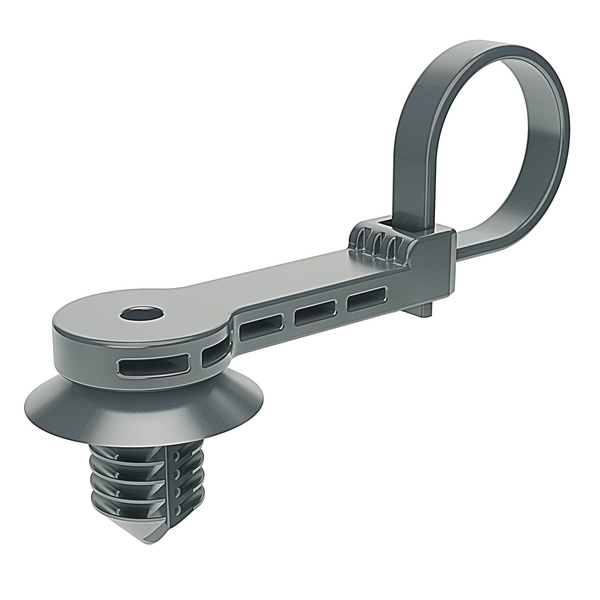

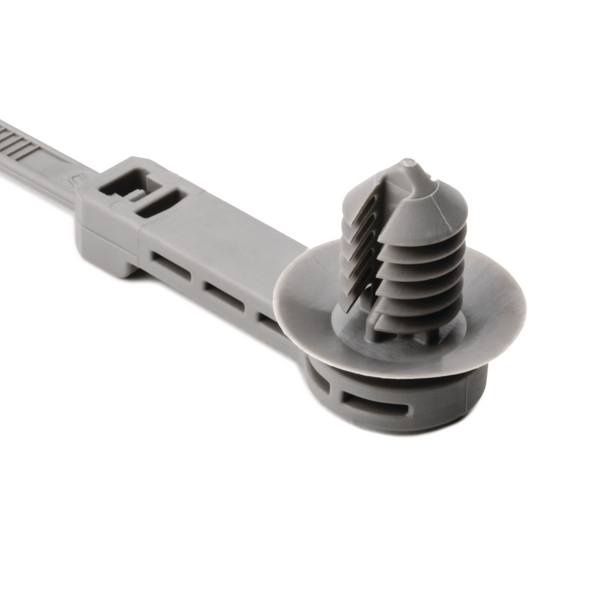

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, grey, 500pcs.
Číslo dílu 157-00120
| T50ROSFT8SO25A-PA66HIRHS-GY
|
Podrobnosti na
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Colour | Grey (GY) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSFT8SO25A-PA66HIRHS-GY |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | With offset 12.5 and 25.0 mm |
| Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes |
| Type | T50ROSFT8SO25A |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 2.0-50.0mm |
| Bundle ∅ min. | 2.0mm |
| Disc ∅ | 19.0mm |
| Height (H) | 22.30mm |
| Length (L) | 230.0mm |
| Length (L2) | 25.0mm |
| Min.Tensile Strength | 225N |
| Offset Length | 25.0mm |
| Panel Thickness max. | 0.6 - 6.65mm |
| Weight/Unit | 0.003084kg |
| Width (W) | 5.1mm |
| for Hole ∅ (FH) | 7.6 - 8.4 mm |
| for Panel Thickness min - max | 0.6 - 6.7 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026440842 |
| Packaging 1 - Height (m) | 0.125m |
| Packaging 1 - Length (m) | 0.335m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01256m³ |
| Packaging 1 - Weight (kg) | 1.542001kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 10.072006kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 141.864kg |
| Packaging 4 - Width (m) | 0.8m |
