22/11/2024

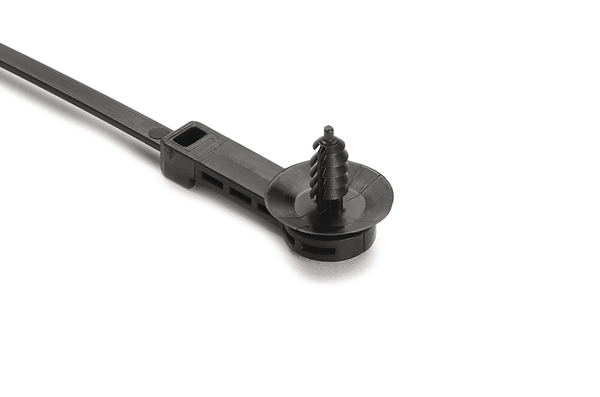

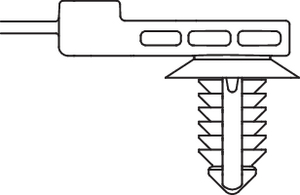

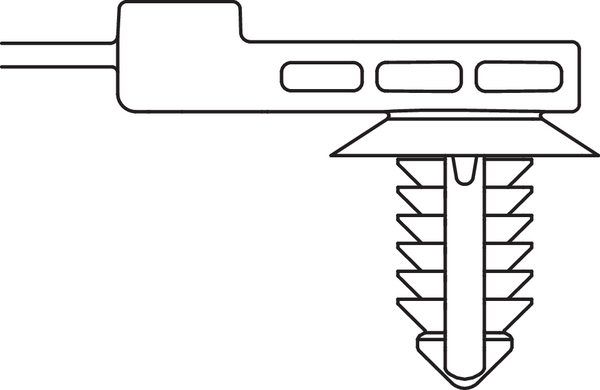

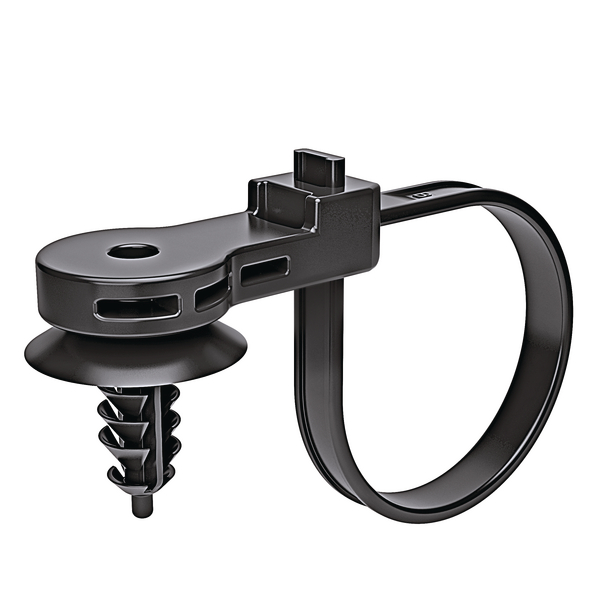

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, black, 500pcs.
Číslo dílu 157-00172 | T50ROSFTM6SO25B-PA66HIRHSUV-BK |  Podrobnosti na

The fir tree mount cable tie is an all-in-one bundling and fastening solution that reduces costs and assembly time.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFTM6SO25B-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
    Type T50ROSFTM6SO25B
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 19.0mm
    Height (H) 21.8mm
    Length (L) 230.0mm
    Length (L2) 25.0mm
    Min.Tensile Strength 222.4N
    Offset Length 25.0mm
    Panel Thickness max. 0.6 - 5.5mm
    Weight/Unit 0.002792kg
    Width (W) 4.6mm
    for Hole ∅ (FH) M6
    for Panel Thickness min - max 0.6 - 5.5 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026624587
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.315m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00929m³
    Packaging 1 - Weight (kg) 1.396001kg
    Packaging 1 - Width (m) 0.295m
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 9.196006kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 131.352kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
