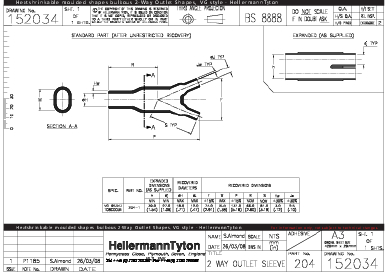

2-Way Outlet Shape VG-Style black, PO-X
Číslo dílu 402-04180
| 204-1-G-PO-X-BK
|
Podrobnosti na
- Mechanical tension relief in cable harnesses
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 204-1-G-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | pcs. |
| Product Family | Helashrink 200 Series |
| Product Group | 2-Way Outlet Shapes, VG style |
| Short Description | 2-Way Outlet Shape VG-Style black, PO-X |
| Type | 204-1-G |
| Variant | For 2-core cables |
Stáhnout
| Designation as per VG-Norm | VG 95343 T08 C 003 A |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +135 °C |
| Nato number | 5970-12-310-2122 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | VG 95343-8:2016-03 |
