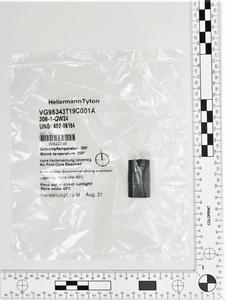

2-Way Outlet Shape VG-Style for 2-core cables black
Číslo dílu 402-06184
| 206-1-GW24-PO-X-BK
|
Podrobnosti na
- Mechanical tension relief in cable harnesses
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 206-1-GW24-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | pcs. |
| Product Family | Helashrink 200 Series |
| Product Group | 2-Way Outlet Shapes, VG style |
| Short Description | 2-Way Outlet Shape VG-Style for 2-core cables black |
| Type | 206-1-GW24 |
| Variant | For 2-core cables |
|
|
| Flexibility | semi rigid |
| HW ± 20 % | 1.5mm |
| HW ± 30 % | 1.5mm |
| JW nom. | 1mm |
| JW ± 30 % | 1.0mm |
| JW/KW ± 30% | 1mm |
| P ± 10 % | 41mm |
| P ±10%=overall length | 41mm |
| R nom. | 22mm |
| R ± 10 % | 19mm |
| S nom. | 19.0mm |
| Weight/Unit | 0.00148kg |
| ∅H max. b | 6mm |
| ∅H min. a | 13mm |
| ∅J max. b | 3mm |
| ∅J min. a | 7mm |
| ∅J/K max. b | 3mm |
| ∅J/K min. a | 7mm |
| ∅K max. b | 3mm |
| ∅K min. a | 7mm |
Stáhnout
| Adhesive | W24 |
| Designation as per VG-Norm | VG 95343 T19 C 001 A |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +135 °C |
| Nato number | 5970-12-311-1300 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | JN1000T, VG 95343-19:2016-03 |
