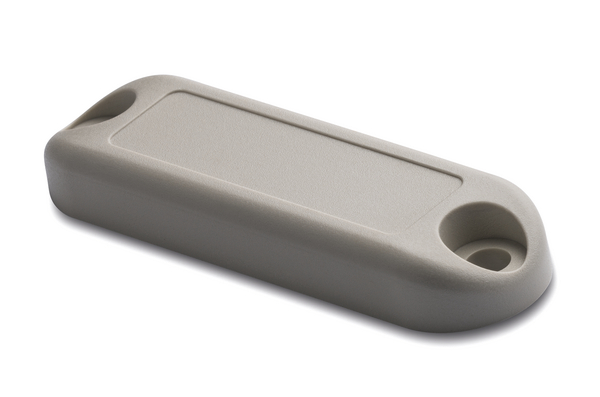

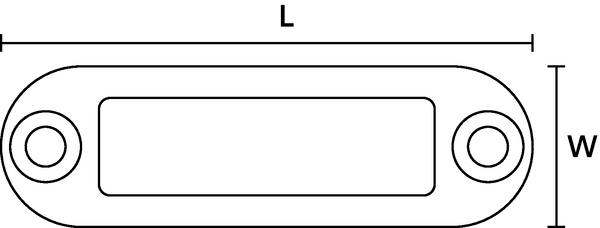

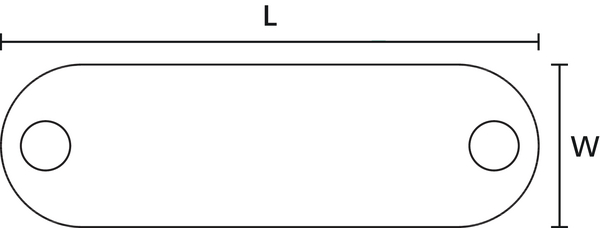

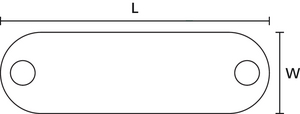

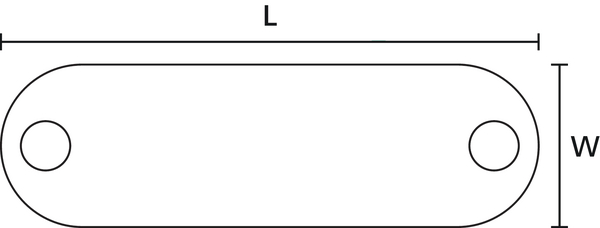

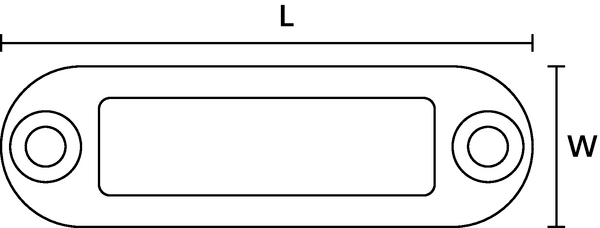

RFID transponder, 865-956 MHz (UHF), bolt-on, 60.00x18.00mm, H=8.00mm, grey, 250pcs.
Číslo dílu 556-00852 | HardTag Solid 60x18-PC/ABS-GY | Podrobnosti na

Identification element with integrated UHF RFID transponder according to EPC EPC Class 1 Gen 2
Carrier material made of impact-resistant plastic

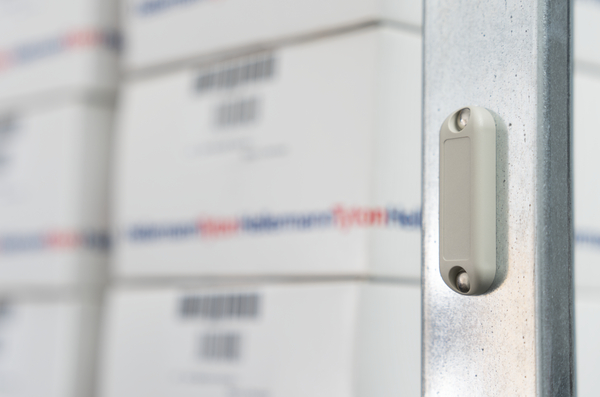

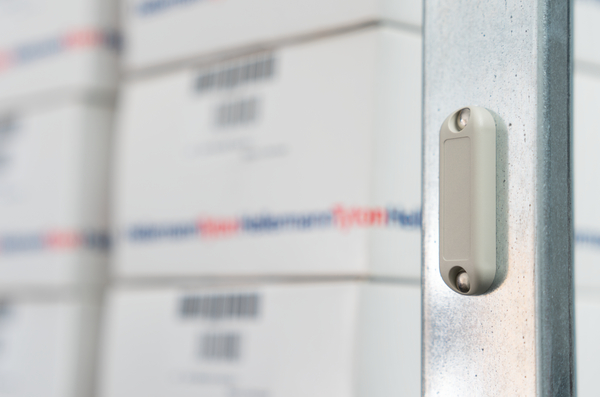

Mounting holes for attachment using bolts, screws, nails or rivets
Suitable for application on all surfaces
Can be attached with the help of adhesive
Clear identification of objects and / or locations through unique numbering systems
Faster, more secure and error-free data management
Robust and durable with data retention
Relatively large range (depending on the circumstances) thanks to the UHF frequency
Bulk acquisition of up to 500 transponders per second possible (depending on infrastructure)
Different colours possible

Vyžádejte si nyní individuální nabídku

Vyžádat nabídku

Najděte distributora ve svém okolí

Více výrobků v této skupině výrobků:

Application	The universally applicable identification elements of ToughLine product group are is ideally suited for the identification of objects and places indoors and outdoors their innovative design. Due to their robustness, the marking element can bis fixed permanently in a durable way to many objects and places. RFID elements of ToughLine product group are ideally suited for the clear identification of pallets or containers. The robust design allows the those identification elements to withstand harsh conditions and rough treatment. An application would be the labeling of disposal bins (garbage cans, garbage cans, garbage containers).
Colour	Grey (GY)
Fixation Method	bolt-on
Material	Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
PART DESCRIPTION	HardTag Solid 60x18-PC/ABS-GY
Pack Cont.	250pcs.
Package Content packed in	pack

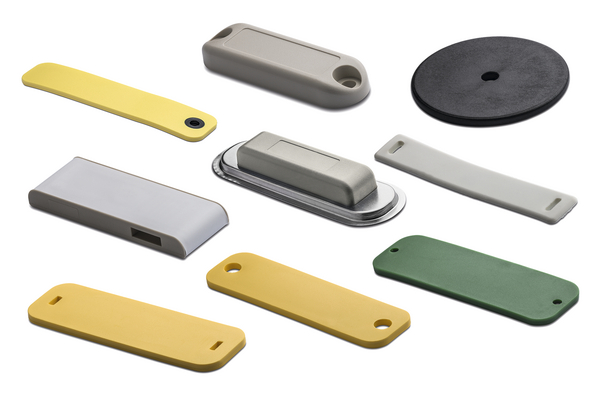

Product Family	ToughLine – Ultra high frequency (UHF), bolt-on, blank
Product Group	Hard tags with RFID transponder
Short Description	RFID identification element 60x18 mm, 865-956 MHz (UHF), PC/ABS, grey
Type	HardTag Solid 60x18

CE Certification	Yes
Data Retention	50 years
ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
IP-Rating	IP68, IP69k
Operating Temperature	-40 °C to +80 °C
ROHS compliant	Yes
Radio protocol	ISO 18000-6C, EPC Gen2
Resistance to	Water: 100h (at room temperature), Salt mist: 100h (at room temperature), Petroleum: 100h (at room temperature), Mineral and vegetable oils: 100h (at room temperature)
Specifications
Specifications	IEC 62262: IK07, IEC 68-2-29, IEC 68-2-6
Tamper proof	No
Type of RFID chip	Impinj Monza R6
Write endurance	100000 cycles
