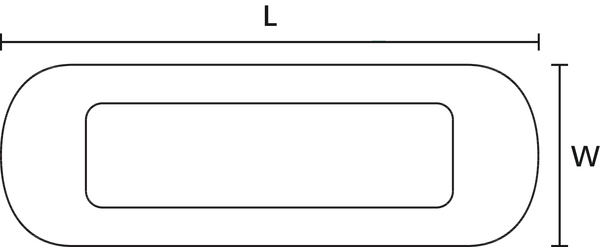

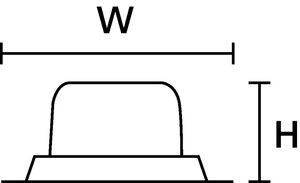

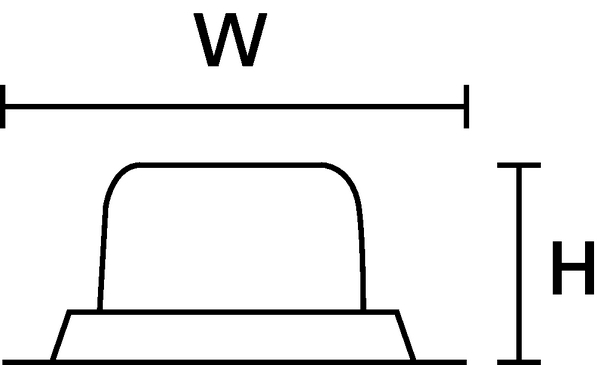

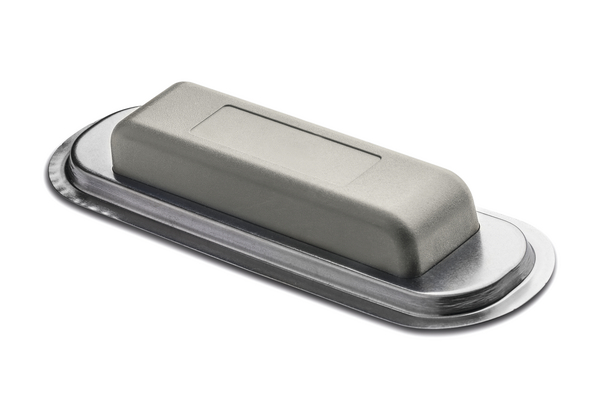

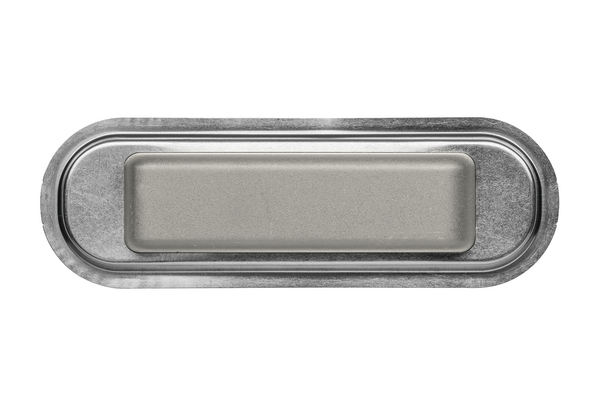

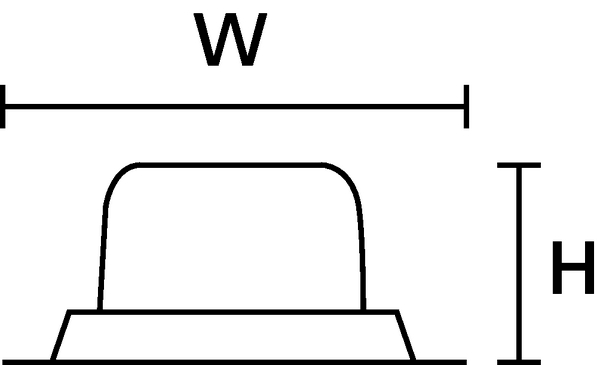

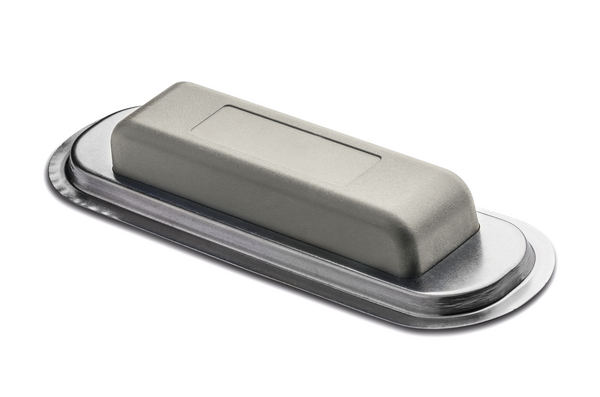

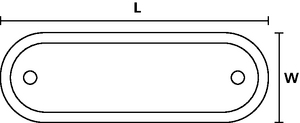

RFID transponder, 865-956 MHz (UHF), weld-on, 105.00x35.00mm, H=15.00mm, grey, 240pcs.
Číslo dílu 556-00811
| RFID HARDTAG SOLID 105x35-PC/ABS/SS-GY
|
Podrobnosti na
- Identification element with integrated RFID transponder according to international standards
- Carrier made of impact-resistant plastic, which has been embedded in a metal ring
- Designed for welding fastening
- Suitable for the application on nearly all surfaces
- Clear identification of objects and / or locations through unique numbering systems
- Faster, more secure and error-free data management
- Robust and durable
- Relatively large range
- Bulk detection of up to 500 transponders per second is possible thanks to the UHF frequency (depending on the infrastructure)
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:

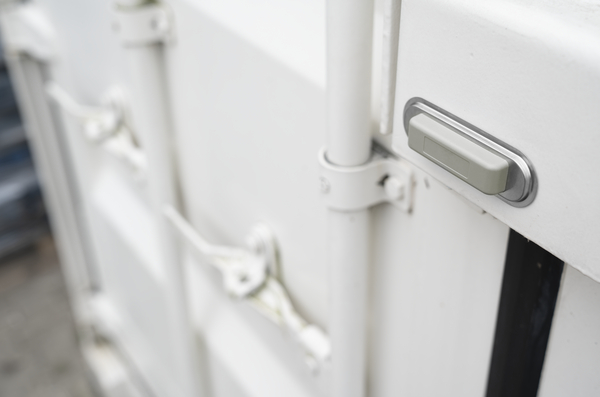

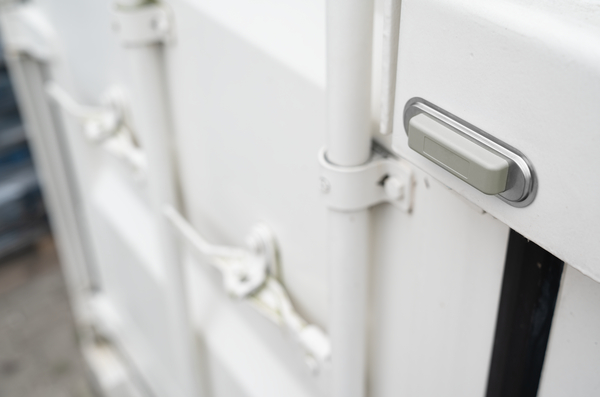

| Application | Due to its robust design, the universally applicable identification element RFID HARDTAG SOLID is ideally suitable for the identification of objects and places indoors and outdoors, especially for the clear identification of objects, machines and transport or disposal containers made of metal. The metal ring equipped with a weld seam offers the possible to create a permanent bond between metal surfaces. Therefore the compact transponder is often used for the clear identification of overseas containers or metal drums. The robust design allows the identification element to withstand harsh conditions and rough treatment. RFID HARDTAG SOLID can also be used on vehicles such as trucks, railway wagons and forklifts. |
| Colour | Grey (GY) |
| Fixation Method | weld-on |
| Material | Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS), Stainless Steel (SS) |
| PART DESCRIPTION | RFID HARDTAG SOLID 105x35-PC/ABS/SS-GY |
| Pack Cont. | 240pcs. |
| Package Content packed in | bag |
| Product Family | ToughLine – Ultra high frequency (UHF), weld-on, blank |
| Product Group | Hard tags with RFID transponder |
| Short Description | RFID identification element 105x35x15 mm, 865-956 MHz (UHF), PC/ABS, grey |
| Type | RFID HARDTAG SOLID 105x35 |
Stáhnout
| CE Certification | Yes |
| Data Retention | 50 years |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| IP-Rating | IP68 |
| Operating Temperature | -40 °C to +80 °C |
| ROHS compliant | Yes |
| Radio protocol | ISO 18000-6C, EPC Gen2 |
| Resistance to | Water: 100h (at room temperature), Salt mist: 100h (at room temperature), Petroleum: 100h (at room temperature), Mineral and vegetable oils: 100h (at room temperature) |
| Specifications |
|
| Specifications | IEC 62262: IK09, IEC 68-2-29, IEC 68-2-6 |
| Type of RFID chip | Impinj Monza 4QT |
| Write endurance | 100000 cycles |
| Country of Origin | MY |
| Customs Number | 85235910 |
| GTIN-13 / EAN | 4031026621920 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.22m |
| Packaging 1 - Qty | 60 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00246m³ |
| Packaging 1 - Weight (kg) | 1.7kg |
| Packaging 1 - Width (m) | 0.186m |
| Packaging 3 - Height (m) | 0.13m |
| Packaging 3 - Length (m) | 0.385m |
| Packaging 3 - Qty | 240 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0118m³ |
| Packaging 3 - Weight (kg) | 7.3kg |
| Packaging 3 - Width (m) | 0.235m |
| Packaging 4 - Height (m) | 0.665m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 9600 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.638m³ |
| Packaging 4 - Weight (kg) | 313.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | -40 °C to +80 °C |
