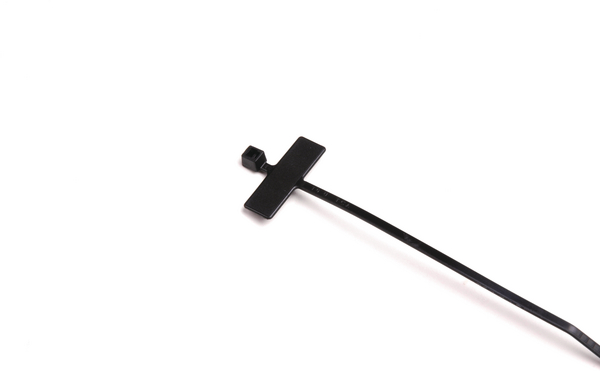

Identification cable tie, 100.0x25mm, ∅6.00-22.00mm, black, 1000pcs.
Číslo dílu 111-81860
| IT18R-PA66-BK
|
Podrobnosti na
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
Colour | Black (BK) |
Fixation Method | None |
Identification Plate Position | attached to bundle |
Material | Polyamide 6.6 (PA66) |
PART DESCRIPTION | IT18R-PA66-BK |
Pack Cont. | 1000pcs. |
Package Content packed in | pcs. |
Product Family | IT Ties |
Product Group | Identification ties and plates for marking cable bundles |
Recommended Labels | TAG23-06TD1 |
Releasable Closure (Yes/No) | No |
Short Description | Cable Tie with Marker Plate 100x2.5 mm black |
Tie Closure | plastic pawl |
Type | IT18R |
Variant | Inside Serrated |
With label space | Yes |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Halogen-free | Yes |
Hazardous Goods | No |
Operating Temperature | -40 °C to +85 °C |
ROHS compliant | Yes |
Specifications | |
Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275 |
UL OCD link | Odkaz |
UL Recognized (US and Canada) | Yes |
UL Recognized (US) | Yes |
UL Type | 11 |
UL-File Number | E64963 |
|
|
Country of Origin | GB |
Customs Number | 39269097 |
GTIN-13 / EAN | 5022660308246 |
Packaging 1 - Height (m) | 0.096m |
Packaging 1 - Length (m) | 0.267m |
Packaging 1 - Qty | 1000 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00674m³ |
Packaging 1 - Weight (kg) | 0.500001kg |
Packaging 1 - Width (m) | 0.263m |
Packaging 3 - Height (m) | 0.192m |
Packaging 3 - Length (m) | 0.586m |
Packaging 3 - Qty | 10000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0439m³ |
Packaging 3 - Weight (kg) | 5.80201kg |
Packaging 3 - Width (m) | 0.39m |
Packaging 4 - Height (m) | 1.164m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 200000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.117m³ |
Packaging 4 - Weight (kg) | 137.04kg |
Packaging 4 - Width (m) | 0.8m |
