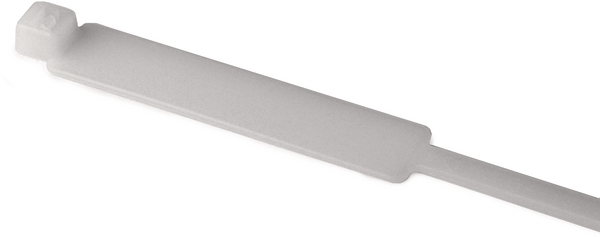

Cable Tie with Marker Plate 390x4.7 mm natural
Číslo dílu 111-85319
| IT50L-PA66-NA
|
Podrobnosti na
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/844489_All_Languages.jpg)
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
Colour | Natural (NA) |
Fixation Method | None |
Identification Plate Position | attached to bundle |
Material | Polyamide 6.6 (PA66) |
PART DESCRIPTION | IT50L-PA66-NA |
Pack Cont. | 100pcs. |
Package Content packed in | bag |
Product Family | IT Ties |
Product Group | Identification ties and plates for marking cable bundles |
Recommended Labels | TAG52-10TD1 |
Releasable Closure (Yes/No) | No |
Short Description | Cable Tie with Marker Plate 390x4.7 mm natural |
Tie Closure | plastic pawl |
Type | IT50L |
Variant | Inside Serrated |
With label space | Yes |
Bundle Diameter max (metric) | 100.0mm |
Bundle ∅ | 19.0-100.0mm |
Bundle ∅ min. | 19.0mm |

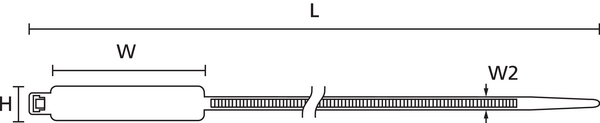

H printable | 12.8mm |
Height (H) | 12.8mm |
Length (L) | 390.0mm |
Min.Tensile Strength | 225N |
Outside ∅ max (OD max.) | 100.00mm |
Outside ∅ max. | 3.94" |
Outside ∅ min. | 0.75" |
Outside ∅ min. (OD min.) | 19.00mm |
Print Method | manual marking |
Thickness (T) | 1.4mm |
Weight/Unit | 0.00335kg |
Width (W) | 56.0mm |
Width (W2) | 4.7mm |
Width printable | 56.0mm |
CE Certification | Yes |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Halogen-free | Yes |
Hazardous Goods | No |
Nato number | 5975-12-391-6206 |
Operating Temperature | -40 °C to +85 °C |
ROHS compliant | Yes |
Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAGE Code 53421 |
Specifications |
![]() ![]() ![]() |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL OCD link | Odkaz Odkaz Odkaz Odkaz |
UL Recognized (US and Canada) | Yes |
UL Recognized (US and Canada) | Yes |
UL-File Number | E64139 |
US Gov. Designation | MS3368-2-9A, Class 1, SAE-AS33681 |
UV-Stabilised | No |
|
|
Country of Origin | US |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026107226 |
Packaging 1 - Height (m) | 0.025m |
Packaging 1 - Length (m) | 0.58m |
Packaging 1 - Qty | 100 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00232m³ |
Packaging 1 - Weight (kg) | 0.335001kg |
Packaging 1 - Width (m) | 0.16m |
Packaging 3 - Height (m) | 0.37465m |
Packaging 3 - Length (m) | 0.59055m |
Packaging 3 - Qty | 5000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0646m³ |
Packaging 3 - Weight (kg) | 17.57005kg |
Packaging 3 - Width (m) | 0.2921m |
Packaging 4 - Height (m) | 1.269m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 60000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.218m³ |
Packaging 4 - Weight (kg) | 231.84kg |
Packaging 4 - Width (m) | 0.8m |
