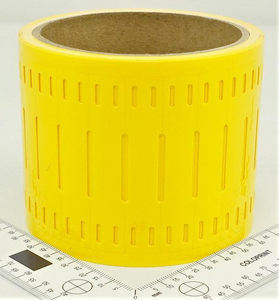

Cable marker, continuous, thermal transfer print, 12.7x65.0mm, white/yellow, reel=500pcs.
Číslo dílu 556-26006
| TIPTAGVA10X65YEWH-PO-WH/YE
|
Podrobnosti na
- Halogen free, tear resistant, and lightweight cross laminated
- Ideal for use where weight is a critical factor
- Each surface has a different colour giving both good background text contrast and reduced stock options
- Perforated structure ensures that pickability is key
- Print requirements can meet MIL-STD-202G using TTDTHOUT on white side and TT822OUT on yellow side
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Marking of cable bundles, tubes and harnesses where low weight and permanent marking are required. An additional protective laminate is not required. |
| Colour | White (WH), Yellow (YE) |
| Fixation Method | Others |
| Material | Polyolefin (PO) |
| PART DESCRIPTION | TIPTAGVA10X65YEWH-PO-WH/YE |
| Pack Cont. | 500pcs. |
| Package Content packed in | reel |
| Product Family | TIPTAG VA |
| Product Group | Thermal Transfer Labels |
| Self adhesive (Yes/No) | No |
| Short Description | Thermal Transfer Label 10x65 mm yellow/white |
| Type | TIPTAGVA10X65YEWH |
| Variant | Other |
| With label space | Yes |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -50 °C to +105 °C |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT822OUT, TT822OUTSM, TTHSTOUT, TTHSTOUTSM |
| Reel Variant | continuous |
| Specifications |
|
| Specifications | BS-4G-198-3, Type 11a, MIL-STD-202G Method 215K, SAE - AS81531 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| US Gov. Designation | MIL-STD-202G Method 215K, SAE-AS81531 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39209990 |
| GTIN-13 / EAN | 4031026313566 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.093m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00069m³ |
| Packaging 1 - Weight (kg) | 0.126kg |
| Packaging 1 - Width (m) | 0.093m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Qty | 500 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Weight (kg) | 0.626kg |
| Packaging 2 - Width (m) | 0.267m |
