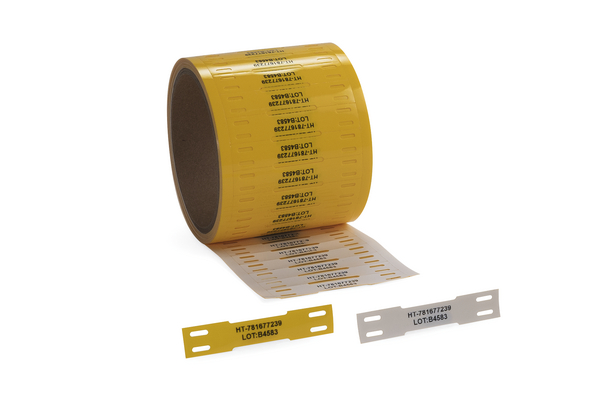

Cable marker, continuous, thermal transfer print, 17.4x90.0mm, white/yellow, reel=500pcs.
Číslo dílu 556-26009 | TIPTAGVA15X90YEWH-PO-WH/YE |  Podrobnosti na

    • Halogen free, tear resistant, and lightweight cross laminated
    • Ideal for use where weight is a critical factor
    • Each surface has a different colour giving both good background text contrast and reduced stock options
    • Perforated structure ensures that pickability is key
    • Print requirements can meet MIL-STD-202G using TTDTHOUT on white side and TT822OUT on yellow side
    ukázat více
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads

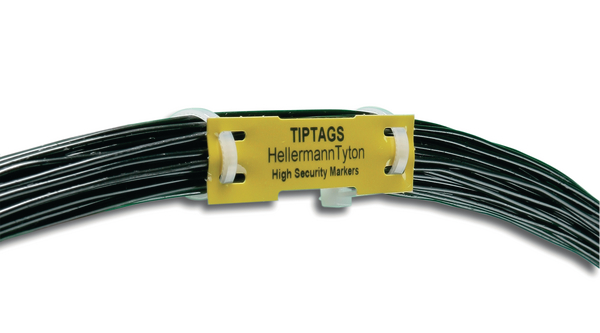

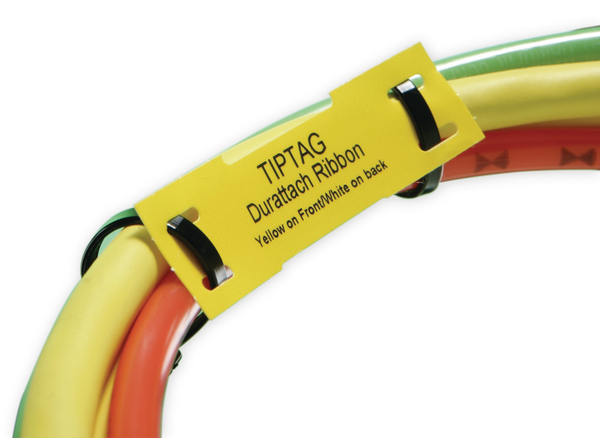

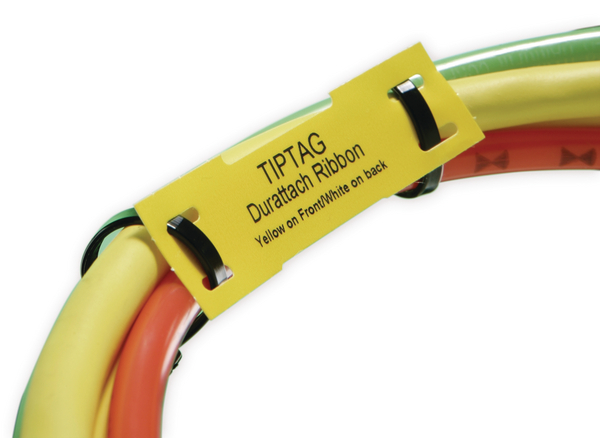

    Application Marking of cable bundles, tubes and harnesses where low weight and permanent marking are required. An additional protective laminate is not required.
    Colour White (WH), Yellow (YE)
    Fixation Method Others
    Material Polyolefin (PO)
    PART DESCRIPTION TIPTAGVA15X90YEWH-PO-WH/YE
    Pack Cont. 500pcs.
    Package Content packed in reel
    Product Family TIPTAG VA
    Product Group Thermal Transfer Labels
    Self adhesive (Yes/No) No
    Short Description Thermal Transfer Label 15x90 mm yellow/white
    Type TIPTAGVA15X90YEWH
    Variant Other
    With label space Yes
    H printable 15mm
    Height (H) 17.4mm
    Length (L) 17.4mm
    Print Method thermal transfer print
    Strap Width max. (G) 0.25"
    Strap Width max. (G) 6.35mm
    Thickness of Foil 210
    Weight/Unit 0.00058kg
    Width (W) 90.0mm
    Width printable 90.00mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -50 °C to +105 °C
    ROHS compliant Yes
    Recommended Ribbon Type TT822OUT, TT822OUTSM, TTHSTOUT, TTHSTOUTSM
    Reel Variant continuous
    Specifications
    Specifications BS-4G-198-3, Type 11a, MIL-STD-202G Method 215K, SAE - AS81531
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    US Gov. Designation MIL-STD-202G Method 215K, SAE-AS81531
    UV-Stabilised No
    Country of Origin US
    Customs Number 39209990
    GTIN-13 / EAN 4031026313597
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.16m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00036m³
    Packaging 1 - Weight (kg) 0.420001kg
    Packaging 1 - Width (m) 0.014m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 55121731
