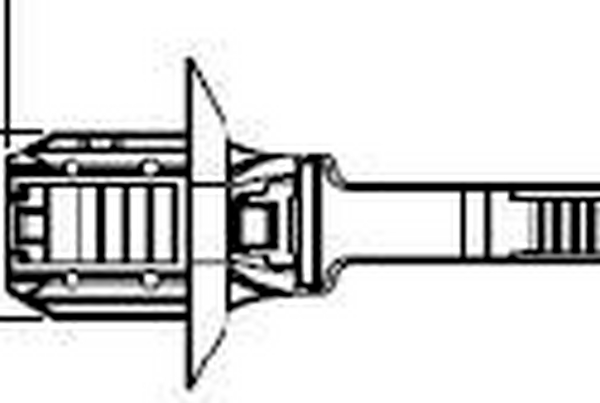

Fixing tie for hole (oval), outside serrated, ∅1.0-33.0mm, grey, 500pcs.
Cikkszám 157-00262
| OS180FT62122-PA46-GY
|
Részletek
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Versions for oval holes feature anti-twist protection
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Cable Tie | Polyamide 4.6 (PA46) |
| Colour | Grey (GY) |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 4.6 (PA46) |
| PART DESCRIPTION | OS180FT62122-PA46-GY |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 1-piece fixing ties with fir tree, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | OS180FT62122 |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 33.0mm |
| Bundle ∅ | 1.0-33.0mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16.0 x 21.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 1.5mm |
| Hole Depth | 11.3mm |
| Length (L) | 180.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.7 – 5.2mm |
| Thickness (T) | 1.5mm |
| Weight/Unit | 0.002052kg |
| Width (W) | 5.1mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm |
| for Panel Thickness min - max | 0.7 - 5.2 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Letöltés
| Country of Origin | KR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026546155 |
| Packaging 1 - Height (m) | 0.085m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00687m³ |
| Packaging 1 - Weight (kg) | 1.026001kg |
| Packaging 1 - Width (m) | 0.245m |
| Packaging 3 - Height (m) | 0.36m |
| Packaging 3 - Length (m) | 0.541m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0695m³ |
| Packaging 3 - Weight (kg) | 10.76kg |
| Packaging 3 - Width (m) | 0.357m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 150.12kg |
| Packaging 4 - Width (m) | 0.8m |
